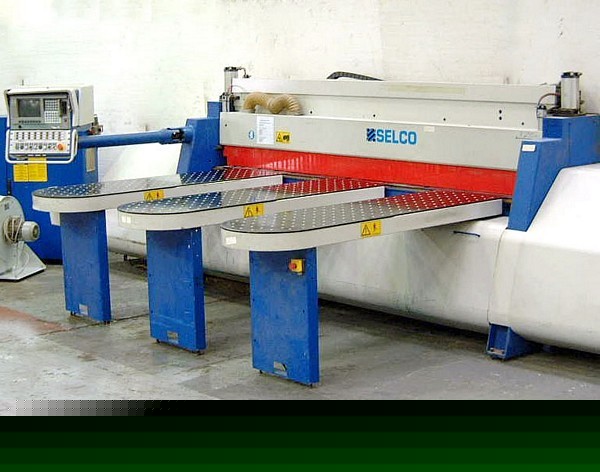

Selco EB110 automatic panel saw - beamsaw
A single automatic panel sizing saw for cutting sheet materials such MDF MFC Composites Ply or Chipboard. The fast high precision programmable pusher has grippers that clamp the boards together and allow you to cut multiple sheets of wood based material at the same time.Powered electronic movement of the scoring saw for standard scoring and postforming operations to give a clean cut.
Features:Digiset" controlled.9" Colour Monitor
Safety flap barrier for rear side of pressure beam
Serial card for data transmission
Air floatation tables on the infeed
Notes: Has only ever cut 1 - 2 sheets high. very good condition.
Variable feed speed saw carriage 0-100m/min
Saw carriage return speed 100m/min
Maximum aligning dimension side aligner 2200mm
Minimum aligning dimension side aligner 60mm
Max diameter of main sawblade 400mm
Pin holes x 2 8.3mm diaNumber of grippers on pusher beam 5
Top dust extraction outlets 2 x 100mm dia
Outlet on end of pressure beam 1 x 150mm dia
Outlet on end of pressure beam on floor 1 x 200mm dia
Minimum air speed require 30m/secExtraction flow required 6200m3/h
Floor space required 6000mmx6600mm
