Powder -x coating systems automated booth

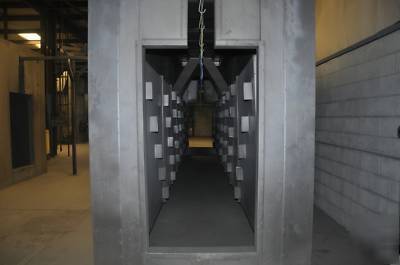

Powder -X Coating Systems Automated Booth
2007 Powder Coating Automated Line System
> - Used in Training Center Showroom
> -Total system footprint as laid out is approximately 91 ft x 77 ft
> - System can be reconfigured simply by changing the conveyor layout
> - Maximum part size is 30" W x 60" H x 72" L
> - Rapid Flex Conveyor, Chain, Drive, Take-Up, & Oiler included
> - Line Speed is 3-8 feet per minute (FPM)
> - Honeywell Controllers & Flame Relays
> - 1st Stage Heated (140 max)
> - 2,000000 BTU Eclipse Burner
> - 400 Single Pass Dry-Off Oven
> - 10,185 CFM Hot Air Movement to ensure proper drying
> - 10 Automatic Guns Included
> - 3 Pass Cure Oven (450 Max)
> - 5" Thick Insulated Panel Construction
Washer - is mild steel. Stage 1 is 1200 gallons, Stage 2 & 3 are 500 gallons each. As for filtration, the are screens in the tanks to keep materials out of the pumps. It has a 2,000,000 BTU natural gas burner.
Dry-Off Tunnel: 6'W x 9'H x 31'L
Conveyor Length is approx. 450 ft
Manufacturer names: Booth & Guns are Eurotec. Oven & Washer are Rapid Engineering, designed for Powder-X Coating Systems specs.
Seller can load most of the machine. The washer will need to be rigged. Unit is like new and mint.
