New honeywell STT350 smart temperature transmitter

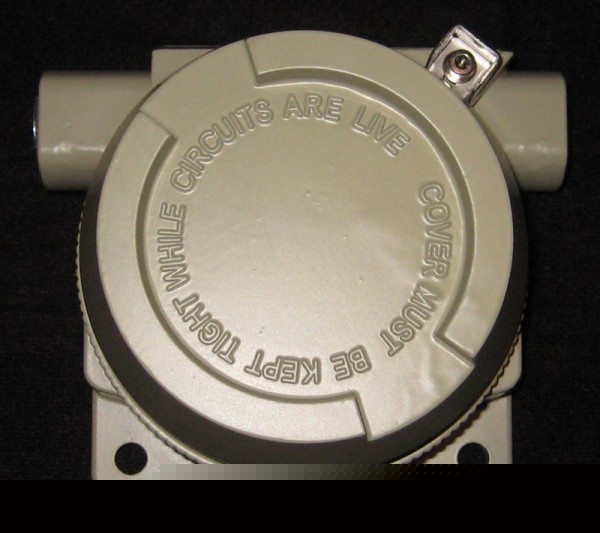

Honeywell STT 3000 Smart Series STT350 Temperature Transmitter New!!
Model # STT350-0-EP00-0000-MB00(***)-000-0000-1C
* Model # STT350-0-EP00-0000-MB00(***)-000-0000-1C
* S/N B115734337, 437, 537, 637, 737
* Supply 11 - 42 VDC (Output 4 - 20mA)
* Ambient Limits -40 to +85 C)
STT350 is Honeywell s high-performance smart temperature transmitter. The output is transmitted in either an analog 4-20mA format or Honeywell s DE protocol format for digital integration with the Honeywell TPS control system. Select the analog or digital output format through the Smart Field Communicator (SFC), the common handheld operator interface for our Smartline transmitters, or with the PC-based SCT 3000 (Smart Configuration Toolkit). All configuration, operation and communication functions are implemented remotely from the TPS consoles or through the SFC or SCT.
STT350 transmitters are suitable for new installations as well as replacements for any conventional or smart temperature transmitters in use today. The transmitter s memory contains the characteristics of the RTD and thermocouple temperature sensors most commonly used. You can easily use the handheld or PC tool to configure the transmitter for any of these sensors.
Accuracies stated in the performance specifications below are available by selecting the sensor type and range (i.e. without user calibration). Calibration of the LRV/URV end points will typically improve accuracy up to two times. Sensor errors can be minimized by calibration to the specific sensor either by setting it at the LRV/URV temperatures or by simulation of the known values.
Additionally, all units pass through environmental stress screening by fast cycling between -40 degrees Celsius and 85 degrees Celsius to ensure maximum product reliability. During this process the ambient temperature coefficients are determined for each unit and burned into memory to ensure temperature compensation over a wide range of operating conditions.
Configuration adjustments and diagnostics checks can be made either locally or remotely from anywhere along the signal wires. This saves time during commissioning, startup and maintenance activities.
Descriptions are Intended Only as a Guide
and Their Accuracy Should be Checked with the Manufacturer.
Common Carriers charge extra to unload, move items inside your building, and delivery to all residential addresses.
This means you must have the equipment and ability to unload from the end of the truck and put your purchase where you want it.
Property and Condition is as Described"
