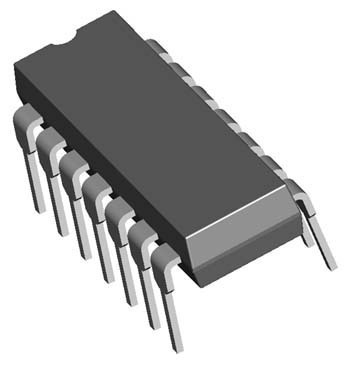

Ic chips: MC3303D single supply quad operational amp
Short Circuit Protected Outputs
Class AB Output Stage for Minimal Crossover Distortion
True Differential Input Stage
Single Supply Operation: 3.0 V to 36 V
Split Supply Operation: 1.5 V to 18 V
Low Input Bias Currents: 500 nA Max
Similar Performance to Popular MC1741C
ESD Diodes Added for Increased Ruggedness
