20 kw silent diesel generator export only, free ship to

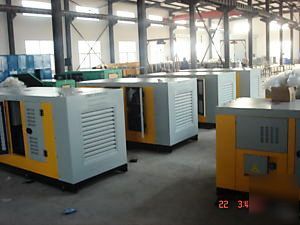

20GF-LDE/495D 20KW(20KVA at 1-phase)LOW NOISE DIESEL GEN-SET with 4P device
> A. Diesel engine(Model: 495D Weichai /44.88HP/1800RPM)
> 2.Cylinder bore x Piston stroke: 95 x 115 mm
> 3.Fuel consumptions: 247 Gram/kw.h
> 4.Starting way: 12V electrical start by one battery
> 5.Cooling way: Water-cooled by radiator
> 6.Total displacement of piston: 3.26L
> 8.Air intake mode: naturally-aspirated
> > 9.Connection:Direct-coupled with the generator by flexible drive coupling
> 10. built-in fuel tank capacity: 70 L.
> B. Main specifications of brushless alternator
> (4)Rated current: 83.3 /166.6A
> (8)Phase connection: 1 phase
> (9)Winding connection: 3 wire connected
> (10)Excitation method: Brushless
> (12)Voltage regulation method: AVR
> (13)Steady-state voltage: IP21
> Contain: V-meter, A-meter,Frequency meter ,circuit breaker,transfer switch,lighter, hour meter,etc
>NOTE: 1)The selected alternator is made in Shanghai,under the technology of Marathon;
> 2)the above quote includes 70L built-in fuel tank.
> 3)four-protection is included in the above quoted STD control panel.
>"4P" four-protection devices include: Low oil pressure alarm; High water temperature alarm; High oil temperature alarm, over-load/speed alarm and automatic shut down of the engine.
