12KW stamford style 3 phase brushless open frame genset
Super Simple 12KW Diesel Gen Set
* 12kw Continous (12,000 watts )
Yangdong YND385 EPA approved diesel used in Jinma and FarmPro and other tractors sold in the US

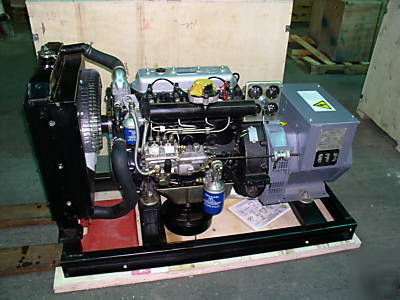

Picture of engine is a 4 cylinder YND485, the YND385 on this generator set the is same but 3 cylinders
* Fuel Consumption (grams/kwh) = 262.5
* Fuel Consumption (gallons)= 1.16 at Full Load (12KW)
* Fuel Consumption (Gallons/KWH)= .096
* Rated Current(A) 18 amps @480 v, 36 amps @ 240 3ph delta., 35 amps 120/240 single phase zig zag , and 17 amps 240 single phase delta
* 120/240 single phase zig zag,
* 120/240 single phase delta
* Dimension (mm) 51 x 27 x 42 approx
