110 ton x 10' lvd hydraulic press brake w/ cnc control

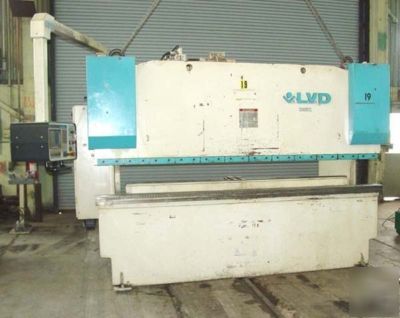

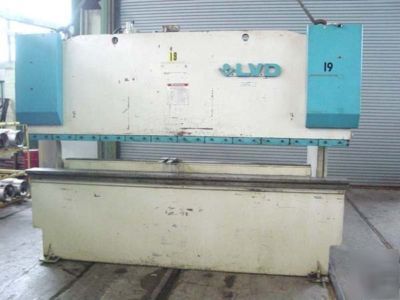

110 TON X 10' LVD HYDRAULIC PRESS BRAKE
Model 110BH10 MNC 85N, S/N 18033, New 1991

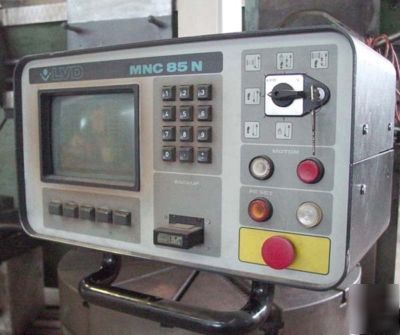

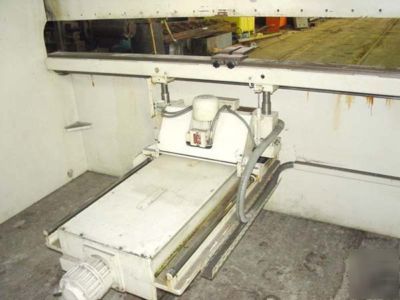

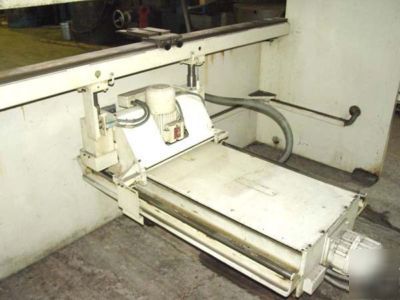

LVD MNC 85N CNC Control, LVD 2-Axis Backgauge, Adjustable Stroke,
Heidenhain Scales On Ram, Infinite Pressure Adjustment.
CATALOG SPECIFICATIONS:Overall Length of Die Surface ........................ 120" (10')
Maximum Bending Length................................ 120" (10')
Distance Between Housings ............................ 100" (8'4")
Tonnage Capacity:..................................... 115 Ton
Throat Depth.......................................... 7.8"
Shut Height w/o Bolster............................... 7.1"
Length of Stroke (Adjustable)......................... 5.1
Open Height........................................... 12.2"
Pressing Speed ....................................... 191 IPM
Fast Approach Speed................................... 237 IPM
Fast Return Speed..................................... 200 IPM
Drive Motor........................................... 10 HP
Electrical System .................................... 440/3/60
Approximate Machine Dimensions........................ 125" x 60"
Approximate Machine Height............................ 103"
Approximate Machine Weight............................ 13,500 Lbs
