Esab migmaster 275 mig welder pkg. 0558008707

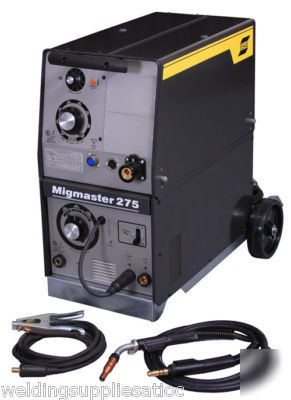

ESAB MIGMASTER 275 COMPACT MIG WELDER 0558008707
TIG CONSUMABLES & ACCESSORIES | MIG WIRE | Helmets AUTO DARKNING | MIG PARTS | MIG PARTS & ACCES
BRAND NEW ESAB 0558008707 MIGMASTER 275 MIG & FLUX CORE WELDER.
Comes with cylinder rack, , 15 foot mig gun, ground clamp and cable, regulator.flowmeter and hose, 10 lb. sample spool of .035 wire , Drive rolls for .035-.045 wire.
CLICK ON THIS LINK FOR COMPLETE SPEC SHEET. http://products.esabna.com/index.php/library/application/pdf/1231737475_migmaster275.pdf
ESAB MIGMASTER 275 COMPACT MIG WELDER
* More power for those tough jobs
* Rated 275 amps at 40% duty cycle - 200 amps continuous 100%.
* DC welding output from 30 to 300 amps - new heavy plate parameters 5/8" and above.
* 24 overlapping heat (voltage) steps for accurate fine tuning.
* Flat and Slope taps for accurate fine tuning of short arc parameters for reduced spatter.
* Feeds wire from 40 to 750 ipm; pulse width modulated, solid state speed control
* Solid State contactor control for high reliability under repetitive short cycle welds.
* NAS gun connection with built-in torch wrap.
* Built-in spool-on-gun control.
Rated DCCV Output (10 min base)
@ 60% duty cycle (NEMA Class I), 60 Hz input
Primary Input Voltage and Current
50/60 Hz, 1 ph, 71/62/37/36/31/25 A
20 to 750 ipm, 0.5 to 16.3 m/min
