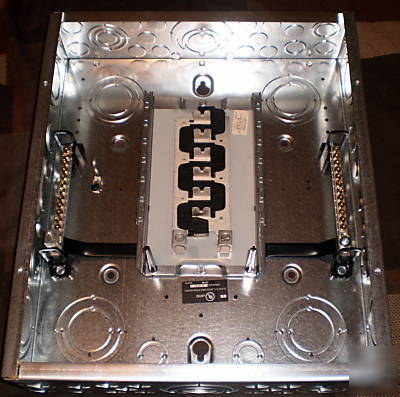

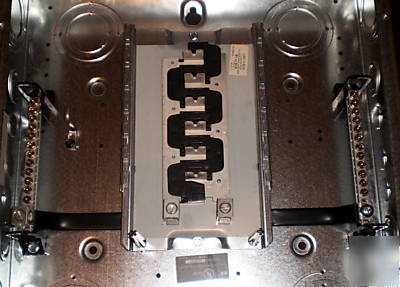

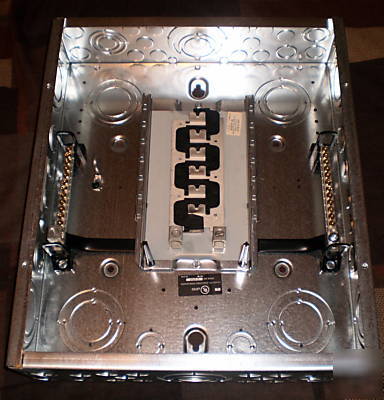

Eaton cutler hammer 125 amp main lug indoor load center
125 Amp Main Lug Indoor Load Center
* Cutler-Hammer Model # BR1224L125
* B1 Box 14-5/16"W x 16-3/4"H x 3-7//8"D
* Breaker types: BR, BD, BQ & GFCB
Single phase, 3 wire, insulated/bondable split neutral, 12 (1") spaces, 24 poles, 120/240 Volts AC. Has notch for No.BREQS125 hold down kit. Ground bar kits (necessary for sub-feeding) sold separately. Tin-plated aluminum bus bar. In accordance with NEC,suitable for use as service equipment when not more than 6 main disconnecting means are provided and when not used as a lighting and appliance panelboard. Twin neutral with non-removable cross bus connecting them. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #6 - 2/0 wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 degrees for bottom feed. U.L. Listed file E52977
