Detex V40 x eb 36" alarmed panic device -cyl rqd


Protect your assets and Secure your exit doors with the latest alarm device from Detex.
The V40 x EB x 36 exit device is a battery powered alarmed exit device for a 36" to 40" wide door. (see the V40 x EB x 48 for doors over 40" wide)
Many of the big retailers use this door hardware for loss prevention, including The Home Depot, Target Stores and Lowes for a few,use this device on their exit doors.
You can use the same device to protect your exit doors from merchandise theft from the public or your own "trusted" employees.
If an unauthorized person attempts to exit through the door a VERY LOUD alarm will sound and you will be notified even in a noisy environment. You WILL know that someone has opened a protected door. To silence the alarm someone with a control key must go to the door to reset the alarm. This action puts you in control of your exit doors and you can insure that the door is closed, locked and re-armed.
The device mounts to your door using a steel mounting plate to which the device is attached. The base plate is positioned by the use of a physical plastic template that does not allow for error. The only way you can goof this one up is by not using the template.
Once the base plate is attached to the door the device interlocks into it, then fastens solidly with two heavy duty machine screws. One person can handle the installation easily. All you do is level it up, mark the holes for the end bracket on the hinge side, drill the pilot holes and attach the end bracket.
Plug in the included 9 volt battery and replace the end cap and you are ready to arm the unit. Voila', you are protected!
If your existing door has a 2-1/8" hole in it for a regular keylock, this unit can be mounted to cover the hole. ( You must remove any other locks from this door to meet the Life Safety and building code requirements.) You still need to use an "O3PR" x cylinder-outside trim to cover the hole. You will also need an edge filler # 161LF to fill the rectangular latch hole in the edge of your door. These filler plates are inexpensive. Look them up in our store.

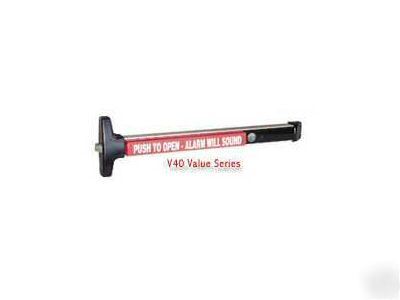

The unit is armed by turning the key in the main control mortise cylinder installed in the face of the alarm panel. You can see it in the photo.
This cylinder IS NOT INCLUDED OR INSTALLED FOR YOU at this pricing. It is sold separately.
This unit can be "dogged" open (latch held back) so your door can be used in a push and pull condition when you are unloading a truck and bringing merchandise in through this door. That really makes it easy. When you are finished all you do is close the door, turn the key, wait 15 seconds for the three beeps that tell you the device is armed and your door is now back in the protection mode.
This delay feature also lets you park in the back and go to your car by recycling (turning it off and then back on) the alarm with the key. You now have 15 seconds to go out the door, close and latch it behind you and listen for the three beeps...now it is locked and armed and you can go home with peace of mind.
If you wish to use this door for access back into the building you will have to install an optional exterior trim with a key cylinder. Please look at the following optional trims available for outside entrance:
If you need it faster you will need to email or call us for next day or 2 - day air charges.
