Compressor oil/dye screw-in injector all refrigerant ac

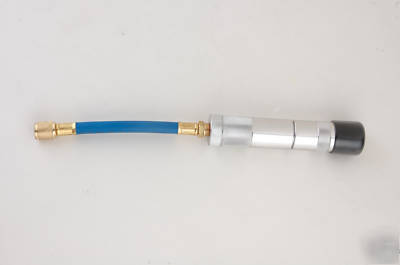

Compressor Oil/Florescent Dye Injector Charger, Screw-in Type, AC/HVAC Field Service Tool
One shot may save a sickened compressor!
eCompressor Oil/Fluorescent Dye
Injector Charger Capacity:1/2 Oz
Click to enlarge You are looking at a brand new
1/2 oz Oil and/or Flourescent Dye Injector , for AC/HVAC/R Services needed by every HVAC service professional
one shot may save a compressor!
Answer: Compressor oil in the compressor of any refrigeration systems, get pumped along the refrigerant through the whole line of refrigerant, and get to a "balance" if the return of the refrigerant to the compressor is not restricted and the suction line is configured right. Other wise the compressor may run out of compressor oil. Replacement of a major part, like a condenser or evaporator in a refrigeration system, or even a dryer/filter, may remove a big part of the compressor oil with the replaced part. Any system with refrigerant leak, will leak oil as well. Restricted return make the compressor short of oil as well even in a newly installed system. In these cases, compressor oil needs to be added to the system. Compressors running short of compressor oil are likely to over-heat, lower efficiency, and add wearing to the compressor and may short the life of the compressor dramatically.
How the compressor oil is added?
Answer: Use an Oil injector like this one, add the oil to the cylinder and hook it up the the service port. Squeeze it in when you screw-down the injector. Oil may be charged to any part of the refrigeration system, injection ot the return/suction line is recommended. This injector does not need the working compressor to get the job done.........
More FAQ at: http://viot.us/showFAQ.php?model=OI2
Free Advice: you have to be knowledgeable about the system, and inject the oil or dye from the low side.
WE DO NOT SELL ANY THING THAT is supposed TO WORK,
* 1/2 oz capacity. Re-loadable, reusable for years to come!
* One shot is all it takes to cure a sickened compressor caused by low oil!
* Compatible with fluorescent dyes for leak monitoring, too
* Compatible with all oil types(POE, or mineral oil)
* Re-loadable, re-usable, keep it in tool box for decades to come.
* Aluminum alloy body, BUILT tough with brass connector.
* 1/4" female connector, make it compatible with most AC systems.
* 5 inch flexible high pressure hose.
* Hand operated(Screw-down), NOT in-line injector, do not need other power.
We, at VIOT, are proud to be an alternative source for quality HVAC tools, serving the HVAC community for almost a decade. Here is a partial list of what we supply:
- Vacuum pumps, from 1.5 CFM to 12 CFM, single stage and dual stage, over 10 models to choose from,
- Clamp meters and multimeters, more functions get the job done easier.
- Halogen and gas leak detectors, find the hard-to-find leaks and fix it,
- Refrigerant Recovery Unit
- Weather monitoring tools: hygrometer, thermometer, wind speed meter
- Manifold gauges, manometers for system diagnosis
- Oil and Florescent dye injectors
- Tubing tools, tube cutters/benders
- Valve tools, valve core remover/installer, Ratchet wrenches, valve cores and add-on valve/service port.
- Car AC attaching /recharging tools, quick connectors
- Temperature/Humidity sensors and monitoring devices.
- Motor start/run capacitors, 5 MFD to 50 MFD, dual capacitance available.
- AC and AC Tool parts, accessories, etc
- Check with us for often. They change from time to time
For more information, click here: http://www.viot.us/HVAC
