20" Width 40" Length Acer AGS-2040AHD 3 Axis SURFACE GRINDER, Auto Incremental Downfeed (mechanical)

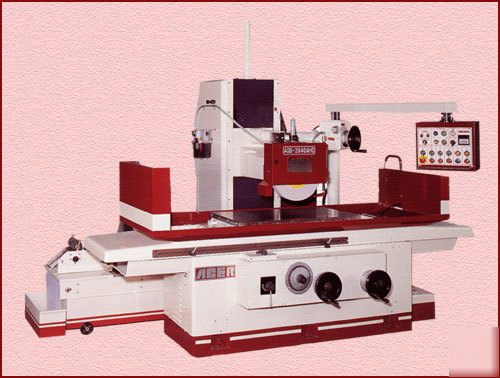

"NEW" ACER High Precision Surface Grinder
MODEL: AGS-2040AHD w/Auto. Incremental Downfeed
Working Surface of Table (W x L): 20" x 40"
Max. Grinding (W x L): 20" x 40"
Distance Between Table Surface & Spindle Center: 23-5/8"
Variable Speed by Oil Cylinder: 16 - 80 FPM
Downfeed Handwheel Dial: Per Graduation 0.0001" - Per
Crossfeed Handwheel Dial: Per Graduation 0.001" - Per Revolution 0.2"
Auto Downfeed Micro Adjustment Dial: Per Graduation 0.0002" -
Longitudinal Travel (from - to): 6 - 40"
Crossfeed Travel (from - to): 0 - 21"
Hydraulic Pump Motor: 5 hp x 6 p
Auto Crossfeed Motor: 1/4 hp x 6 p
Grinding Wheel (O.D. x T x I.D.): 16" x 5" x 2"
Rotation Speed of Spindle (Horizontal): 1750 RPM / 60 HZ
Max Load Capacity in Addition to Magnetic Chuck: 2,200 lbs.
One V and one flat table slideways are coated with Turcite-B.
Reinforced column with Meehanite cast iron allows for heavy duty
Double-V crossfeed ways are laminated with Turcite-B.
Recirculating auto lubrication system ensures all moving parts are
Spindle uses four Class 7 high precision angular contact ball
bearings. They are sealed and greased for life.
Enlarged hydraulic tank with dual pump design allows for accurate
downfeed and smooth table movement.
Hydraulic temperature is kept constant by a separated cooling
system. This is to make sure oil temperature will not rise more
than 20 over room temperature.
Mechanical downfeed designed for easy maintenance.
V 3 graded 10 HP spindle motor.
Maximum grinding capacity is 20" x 40"
Front setting crossfeed dials allow users to set work piece distance
without moving away from control panel.
Coolant System w/Magnetic Separator & Paper Filter
20" x 40" Electro-Magnetic Chuck
Free Installation of machine in lower 48 states
Walker or other brands of Electro-Magnetic chucks
Newall 2 Axis DRO with .0001" Resolution
Sony 2 Axis DRO with .00002" Resolution
