06-02991 hp agilent 33311C spdt coaxial switch rf relay

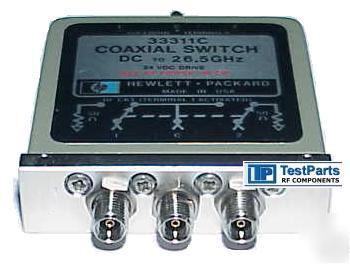

HP 33311C SPDT Coaxial Switch - DC to 26.5GHz
The 33311C is a high isolation, single-pole, double-throw, coaxial switch. The operating frequency range is DC to 26.5 GHz. Coaxial connections are APC-3.5 Female. 24VDC. The ungated port automatically terminates into 50 ohms. Internally, latching solenoids only draw current when switching and are disconnected afterwards.
* 3.5mm Female Connectors (3.5 mm)
