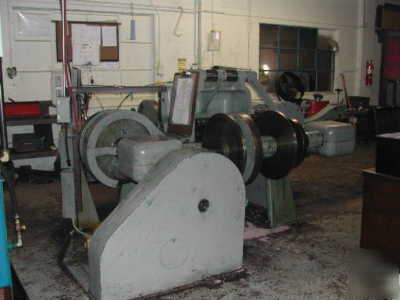

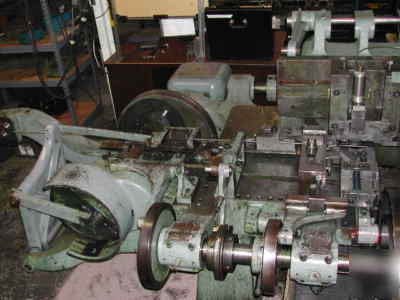

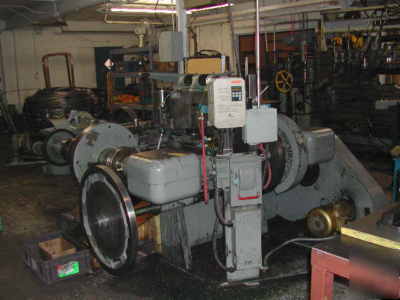

Wire bender, model 4-30 baird fourslide
MODEL 4-30 BAIRD, S/N: 4607-5B
RATED 1/4 INCH DIA. WIRE TO 30 INCH MAX FEED LENGTH
DRIVE: - BALDOR SUPER E, 10HP MOTOR, 460 VAC
- GENISIS NC INVERTER PROVIDING VARIABLE SPEED, 15 TO 70 PPM
- HORTON AIR CLUTCH / AIR BRAKE
THIS MACHINE HAS VERTICAL FORM BRACKET FOR DUAL VERTICAL FORMING SLIDES;
- HAS CAMS FOR BOTH SLIDES, ONLY ONE VERTICAL SLIDE INCLUDED, ONLY ONE
IT HAS VERTICAL TRANSFER ARM AND CAM
IT HAS CAMS FOR MAX 30 INCH FEED TO BE USED WITH TRANSFER ARM
IT HAS CAMS FOR 15 INCH MAX FEEDTO BE USED WITHOUT TRANSFER ARM
SHOPMADE AUXILLARY CAM FOR A 2ND CUTTER
NOTE: MAX CUTOFF POSITION TO CENTERLINE OF FRONT SLIDE IS 10 INCHES,
WE CAN EXTEND TO STD. 16 5/8 FOR AN ADDITIONAL $1500.
MACHINE IS IN VERY GOOD CONDITION, UNDER POWER.
