Toshiba dual power darlington, 100A 1200V, #MG100Q2YK1
Toshiba Dual NPN Power Darlington,

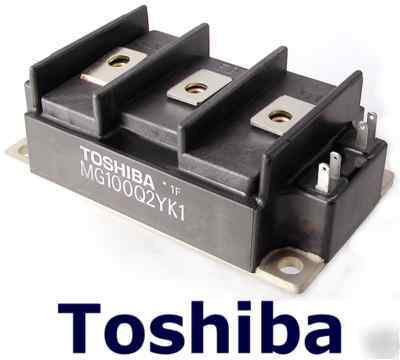

This is a Toshiba 2x NPN Power Darlington (Part# MG100Q2YK1) rated at 100A IC and 1200V VCES.
It is NEW and unused stock from a Variable Speed Motor/Drive Installation & Maintenance company that recently closed down and is guaranteed against DOA. It was stocked as a spare part for Toshiba AC motor drive controllers.
1. Electrodes are isolated from the heatsink (2500V AC)
2. High DC current operating gain (hFE 100 min)
3. tf = 5.0us max., trr = 1us max.
4. Low saturation voltage, VCE(SAT) = 2.5V max.
6. Includes a complete half bridge card in one package
The MG100Q2YK1 has the following main specifications,
700 W (collector power dissipation)
