Tektronix P6248 1.5GHZ differential probe accessores
Tektronix P6248 1GHz Differential Probe
http://hi.baidu.com/static/album/album.swf?id=1f1e42f3dbec9313b17ec538&spaceurl=rundeng2009&name=/album.swf
* 1.7 GHz (Typical Probe Only 27 C) 1X Mode
* 1.5 GHz Bandwidth (Guaranteed)
* 1.85 GHz (Typical Probe Only 27 C) 10X Mode
* Low Input Capacitance: <1 pF Differential
* Probe Input Connector: Two Standard 0.025 in./0.63 mm (0.1 in. center) Square Pin Receptacle (Female)
* Electrostatic Discharge Tolerant (IEC 801-2)
* Connects to TEKPROBE BNC Interface on TDS Series Oscilloscopes or Other Instruments Using 1103 TEKPROBE Power Supply
* For Use with Oscilloscopes, Spectrum or Network Analyzers
* >60 dB (1000:1) Common Mode Rejection Ratio (CMRR)
* Small Probe Head Allows Easy Probing of SMDs
* Communications (Gigabit Ethernet, IEEE-1394, Fibre Channel)
* Semiconductor Characterization (RAMBUS)
* Disk Drive Read Channel Design
* Communication Pulse Shape Compliance
* Jitter, Cross-Talk, BERT Measurements

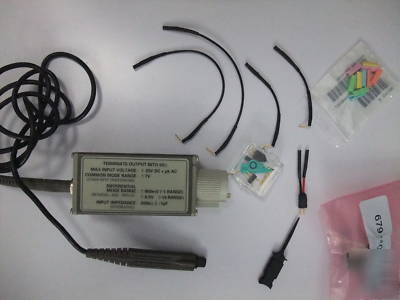

679-4094-00 BNC to Probe Tip Adapter 1PCS
016-1315-00 Coding Color Clips 10PCS
016-1785-00 TwinFoot ADAPTER 1PCS
196-3436-00 6 Ground Leads 2PCS
196-3437-00 3 Ground Leads 2PCS
206-0569-00 TIP, PROBE MICROCKT TEST 1PCS
