Northwest 22X auto level builders sight survey transit

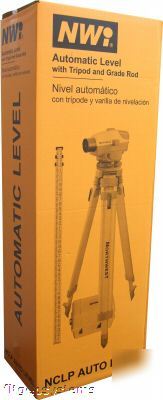

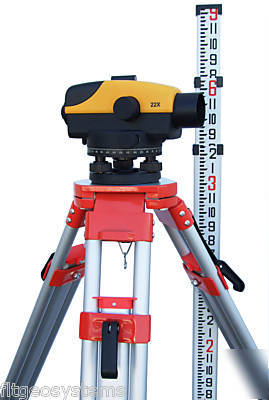

We are offering a BRAND NEW Northwest 22x Auto Level PKG with 1 yr manufacturer's warranty

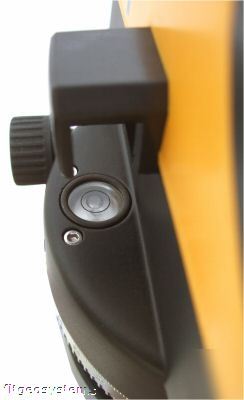

Place the 22x Auto Level on the tripod and use the leveling screws to get the instrument approximately level (bubble inside the bullseye). The Auto Level will level itself automatically by gravity giving you a horizontal line of sight. Unlike older levels, the Auto Level will stay level for the duration of the job and you never have to worry about any readjustments. Simply use the focus knob to bring the level rod into focus, and turn the eyepiece to generate sharp, clear crosshairs.

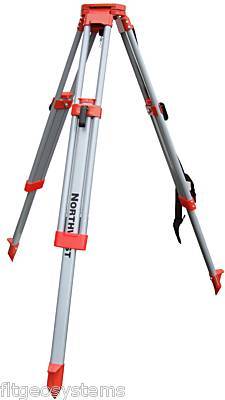

1. Tripod Northwest NAT83 Aluminum Flat Head Tripod. It comes with a standard 5/8" x 11 threaded core screw (with plumb bob hook) that is compatible with most instruments sold today. This tripod is 100% aluminum and utilizes quick clamp locking mechanisms which allow for easy height adjustments and keep the legs firmly locked in place even in high vibration environments. The tripod measures 38" (closed) and 62" (open). It comes with a shoulder strap, hardened steel tripod shoe points, and a plumb bob hook on the core screw for hanging plumb bobs.

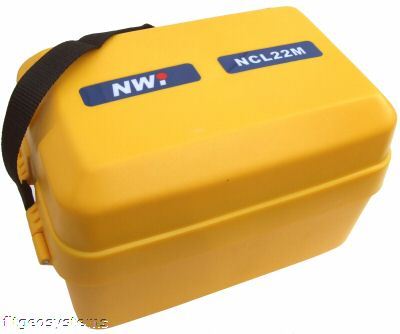

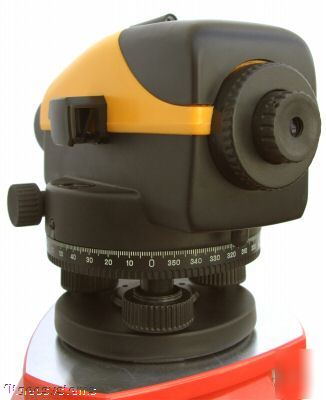

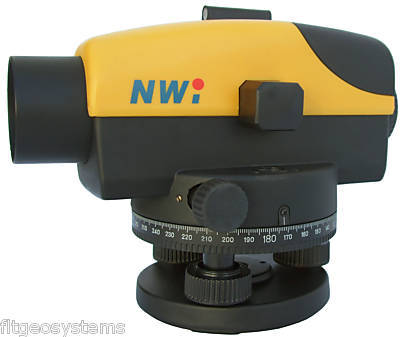

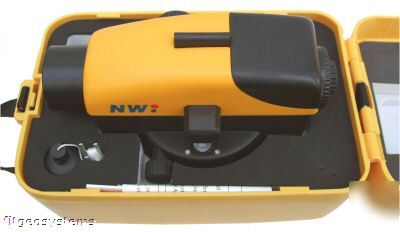

2. 22x Auto Level The Northwest NCL22x Automatic Level has 22x magnification and leveling accuracy of 1/16" @ 100 ft. It has a robust aluminum frame and a magnetically dampened compensator to ensure consistent accuracy. The level also features double sided tangent knobs for convenient operation, and a multi-layer coated lens to provide a clear, sharp image. A yellow hard-shelled carrying case and plumb bob are also included.

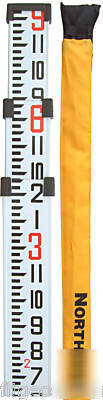

3. 9' Level Rod Northwest NWT09 Telescoping Aluminum Level Rod graduated in ft/inches/8ths (also available in ft/10ths for no extra chrage). It is constructed of 100% aluminum and consists of three sections each with a button lock. Graduations are anodized onto the aluminum to withstand the harshest work conditions. A convenient measuring scale exists on the backside allowing users to read the height of the rod at eye level. The rod is 42" collapsed, 1 3/4" wide, 7/8" thick and will fit all laser detector clamps sold today. The level rod base is reinforced with an extra plate of aluminum allowing it to withstand typical jobsite abuse. Each section collar is riveted for added strength and durability.
Nylon Level Rod Carrying Case for $7.00
Substitute a 14' Level Rod (10ths, Inches, or Metric) for $17.00
Substitute a 16' Level Rod (10ths, Inches, or Metric) for $20.00
$82.00 United States Post Office Priority International
$52.00 United States Post Office Priority International Mail
$95.00 United States Post Office Priority International
$85.00 United States Post Office Priority International
