98548 loctite benchtop peristaltic dispenser pump

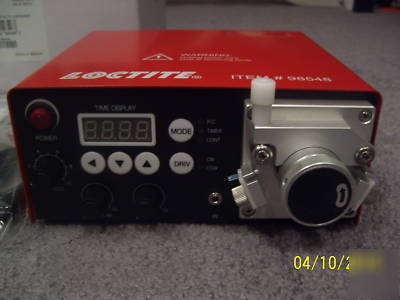

98548 BENCHTOP PARISTALTIC DISPENSER

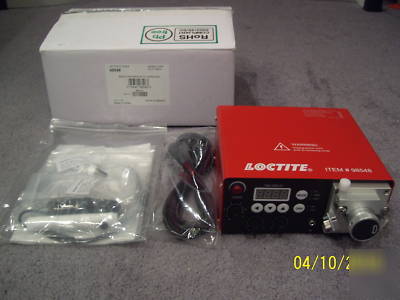

NEW STILL IN ORIGINAL BOX W/ INSTRUCTIONS AND ACESSORIES.
The Loctite Benchtop Peristaltic Dispenser is a reliable and effective volumetric dispenser for single-component, low viscosity adhesives. It is great for precise dosing or applications that require a specific flow rate. This Dispenser is electro-mechanically operated and does not require the use of an air source. It transfers liquids via pressure displacement applied by a rotor turning against a tube that carries the material from the bottle to a hand-held dispense valve. This Dispenser provides volumetric dispensing of non-thixotropic materials such as cyanoacrylates, anaerobics, UV products, or solvents up to a viscosity of 5,000 cPs. It can be used as a manual or semi-automatic workstation.
Air-free dispensing eliminates air in product.
Forward and reverse motion of rotor.
Instant reverse for vacuum suck-back; shuts off the flow of liquid and prevents dripping
Adjustable post-delay time for vacuum setting.
Simple and convenient load mechanism provides for easy cleaning.
Continuous or timed mode of dispense.
Includes four (4) different feed line tubing sizes to accommodate various product viscosities.
Virtually no wasting of adhesive since it travels from the product bottle, thru the feedline tubing, and onto the part.
No flushing of dispense valve required
No downloading of adhesive required - just place the feedline into the original bottle.
Power Supply: 110 / 220 VAC; 50/60 Hz.
Dispense time range: 0.01 to 99.9 seconds
Maximum Flow Rate: Up to 6 ml. per minute
Direction of rotation: Clockwise (CW) or Counterclockwise (CCW)
Dimensions: 7.2 inches W x 3.2 inches H x 6.7 inches D
Suck-back: Programmable by reversing the direction of rotor.
