New instek gsp-810 spectrum analyzer 150KHZ-1GHZ digital

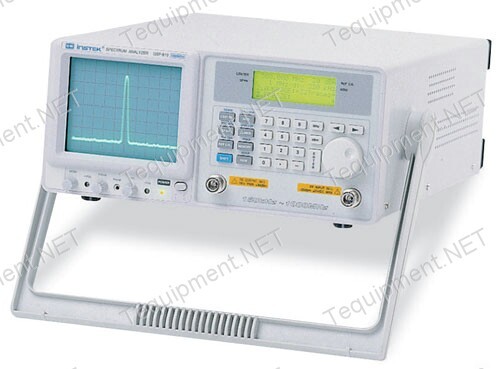

Instek GSP-810 Spectrum Analyzer
* Frequency Range : 150kHz ~ 1000MHz
* Fully Digital Phase Locked Loop Technique Design
* High Frequency Stability : 10ppm
* High Resolution of Span to Measure the more detailed signal : Zero, 2kHz ~ 100MHz
* High Input Protection Level : +30dBm, 25VDC
* Reference Level Range : -30dBm ~ +20dBm
* Good Noise Floor Performance : -95dBm @30kHz, -100dBm typical ; over -150dBm/Hz typical @220kHz and 4MHz RBW
* Intermodulation (3rd) :<-70dBc
* Two Markers for Absolute and Relative Measurement
* Functions : Max. Hold, Average (2 ~ 32 traces), Freeze, Peak Search, Marker to Center Function
* RS-232 Interface and Display Software to get Trace from GSP-810 to PC
* Options :Power Meter, Tracking Generator, Remote Control Software
* Tracking Generator: With the tracking generator option, the GSP-810 enables you to measure the characteristics of the device under test, such as filter or RF power amplifier. In addition, it provides a normalization feature to "calibrate out" the gains and losses in the cables and other devices under test.
* Power Meter: With the power meter, GSP-810 can measure the total power of input signal in the units of mW or dBm.
Spectrum Analyzer - 150KHz-1GHz
Spectrum Analyzer - with Tracking Generator
Spectrum Analyzer - with Power Meter
Spectrum Analyzer - with Tracking Generator & Power Meter
GSP-810 & 827 RF cable N type male connect
Remote Control Software for GSP-810
3' Cable with N type male connector (for GSP-810)
Click here to download the Instek GSP-810 manual (PDF)
1kHz C.F. entry, 40Hz Sweep resolution at 2kHz/DIV
2ppm/year aging, 10ppm, 0 to 50 C
Zero, 2kHz to 100MHz/DIV, in a 1-2-5 sequence
-95dBm@30kHz RBW, -100dBm typical/-75dBm:150kHz ~ 10MHz
1.5dB over 100MHz, 2.5dB typical over entired band/ 3dB:150kHz ~10MHz
<-40dBc, RF input < selected reference
<-60dBc typical down from reference level, average, 5MHz/div
<-70dBc, @-40dBm input, 2 tones, 2MHz apart/<-45dBc:150kHz ~10MHz
-77dBc/Hz at 1GHz, 30kHz offset
50dB to 0dB in 10 dB steps coupled to reference level
Absolute, Relative, PK -> Marker, Marker -> Center
Max. Hold, Average(2 ~ 32 traces), Freeze(Hold)
Internal speaker, 3.5mm stereo jack, wired for mono operation
Remote Display Software & RS-232
Connecting to PC and getting trace from GSP-810, software will be downloaded from here
100/120/220/230V AC 10%, 50/60Hz
310(W) x 150(H) x 455(D)mm, approx. 8.5kg
Tracking Generator (Option 01)
1dB@, 10MHz/DIV, 1.5dB@0dB,entire band
10MHz to 2GHz, usable to 2.7GHz
-20dBm to +23dBm, usable to +30dBm
+40dBm<10% duty cycle, <10mS duration
<1:1.35 VSWR into 50 ohms, <1:1.25 typical
0.2mW, 100mW scale, 2 W, 1mW scale; 0.1dB, Log scale
Remote Control Software (Option 03)
Connecting PC to get trace and provide the control for setting
