New 5 watt 808NM c mount laser diode pump, night vision

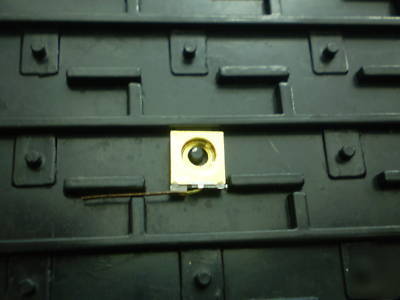

NEW, 5 WATT, 808nm, C MOUNT LASER DIODE WITH A 8X8 GRIN LENS
IMPORTANT NOTE: THESE 5 WATT C MOUNTS ARE TWICE THE HEIGHT OF A NORMAL C MOUNT, CONSIDER THIS BEFORE PLANNING ON REPLACING A LOWER POWER C MOUNT WITH THIS DESIGN, IT MAY TAKE SOME MODIFICATION TO YOUR SYSTEM TO GET ONE OF THESE TO FIT.
THE ACTUAL DIMENSIONS OF THE 5 WATT C MOUNT LASER DIODE ARE 6.9 x 6.4 x 5mm
OPERATING CURRENT MAXIMUM: 5.5 AMPS
THRESHOLD CURRENT: 3.2 AMPS.
PHOTON CAVITY FACET AREA (MICRONS METRIC): 250X1.
DANGER THIS IS A CLASS 4 . 5 WATT CONTINUOUS WAVE 808nm LASER DIODE. VISIBLE AND/OR INVISIBLE LASER RADIATION EMITTED FROM DEVICE. AVOID EYE AND SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION.
