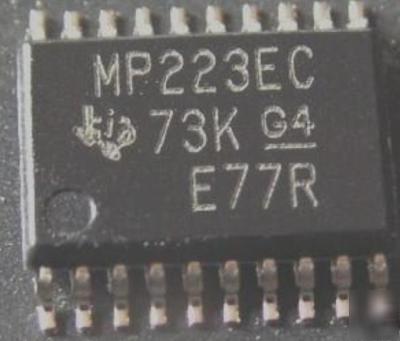

MAX3223E multichannel rs-232 driver receiver 100PCS
These parts are 2.75$ each at Digi-Key, so take advantage of this No Reserve Low Price listing. These components are NEW, well kept in a dry and anti-static environment, and they will be properly packaged in anti-static foams or bags for safe transit.
The MAX3223E consists of two line drivers, two line receivers, and a dual charge-pump circuit with 15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The device operates at typical data signaling rates up to 500 kbit/s and a maximum of 30-V/ms driver output slew rate.
