Triple outputs laborat power supply CA18303D

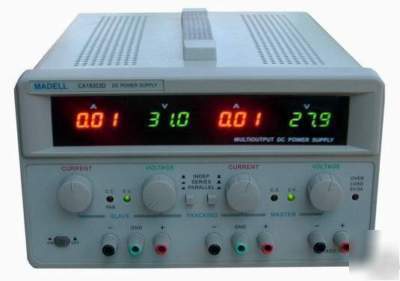

Triple Outputs Laboratory Power Supply
CA18300 series DC power supplies are triple outputs, voltage and current adjustable high precision, low ripple, linear power supplies with constant voltage or constant current (CV, CC)controls.
The CA18300 DC power supplies have 3 digits four LED displays of voltage and current. All the models equipped with 5V and 3A output fixed output. The two adjustable channels can be used as independently isolated, serial or parallel. Also, one channel can be the master of the other channel. The output voltage is the summation of the two channels when the power supply is used in serial mode, and the output current is the summation of the two channels when it is used in parallel mode. Please kindly refer to the details as following:
* Two variable outputs, 30V/3A, 30V/3A
* Adjustable current limit
* Displays voltage and current at the same time
* Independent, series, parallel, master/slave modes
Please refer to User's Manual for details at http:// /CA18303.pdf
