Hp agilent 8503B 500KHZ to 1.3 ghz sparameter test set

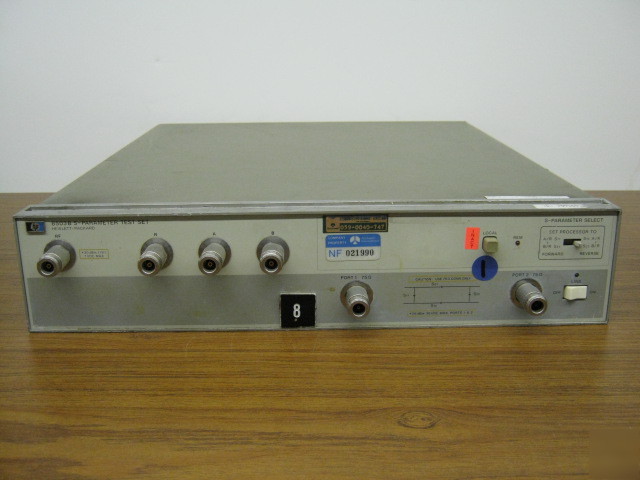

HP Agilent 8503B 500KHz to 1.3 Ghz Sparameter Test Set
Due to its wide frequency range of 500kHz to 1.3GHz and directivity of >/=40 dB, the 8503B S-Parameter Test Set is considered one of the best in the industry. Frequency response: Transmission (S1, S2): 1 dB, 12 from 0.5 to 1300MHz; Reflection (S1, S2): 2 dB, 20 from 0.5 to 1300MHz): 15 from 2 to 1300MHz. Maximum operating level of 20 dBm. Connectors: Test ports, 75 ohm APC-7, all other RF connectors, 75 ohm Type N(F); bias inputs, BNC female. DC bias input: 30 VDC, 200 mA.
