Hp agilent 54701A 2.5GHZ probe with accessories -mint

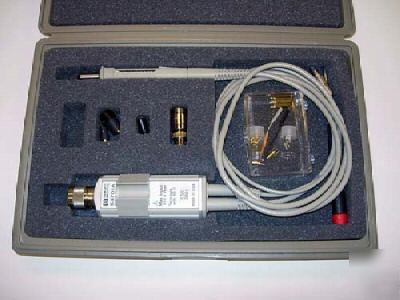

HP Agilent 54701A Probe with Accessories (Mint)
TThe HP 54701A 2.5GHz, 10:1 active probe provides ultra low loading of the device under test because of it's low 0.6pF capacitive loading and it's high 100 KOhm resistive loading. It's 40 Vac maximum input voltage, 15KV ESD tolerance and replaceable probe tips make the probe extremely reliable.
* Attenuation Factor: 10:1
* Bandwidth (-3dB): > 2.5 GHz
* Input Resistance: 100 kOhms
* Input Capacitance: 0.6pF (typical)
* Maximum Input Voltage: 200V [ dc + peak ac (<20 MHz) ]
* ESD Tolerance(150 ohms/150 pF): 12 kV
* Dynamic Range: 5V peak ac and 50Vdc
* Offset Adjustment Range: 50V
Agilent 54701A Probe with Accessories x 1
