Hp 8341A 0.01-20GHZ synthesized sweeper for 8510C vna

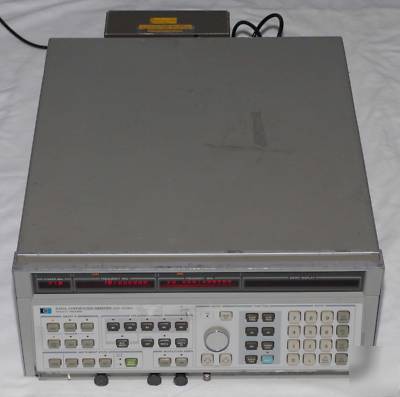

HP/Agilent 8341A 10MHz - 20.0 GHz Synthesized Sweeper with Option 004 & 007 for 8510C Network Analyzer
Up for sell is a HP/Agilent 8341A 10MHz-20.0GHz frequency synthesized sweeper with option 004 rear panel RF output and 90dB attenuator, and option 007 improved phase noise specification. The signal sweeper is compatible with HP 8510B/C network analyzer. The serial number of the unit is 2520A00515. The system has been fully tested and is in excellent working condition. The calibration expired but the measurement is still accurate. The 10MHz internal frequency standard is believed to be less than 1 Hz error.
The HP 8341A Frequency Synthesized Sweeper provides 1 to 4 Hz frequency resolution over a 10MHz to 20GHz range at powers from -110dBm to +10dBm. Standard features include a quartz oven time base, step attenuator, IEEE-488 interface, and AM/ FM/Pulse modulation. It's high stability, frequency accuracy, and signal purity make this a good choice for a stand-alone source or as a component of a vector or scalar network Analyser system.

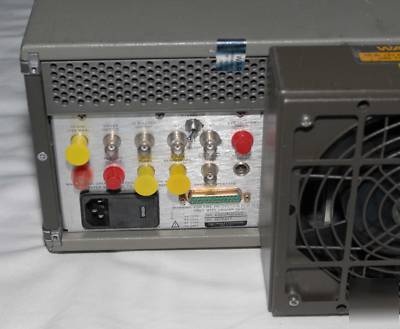

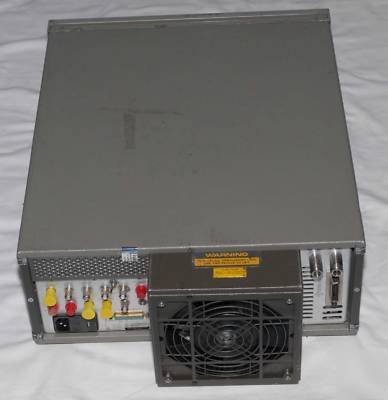

Option 004 = Rear Panel RF Output with 90dB Attenuator
Option 007 = Improved Phase Noise Specification
* Frequency range: 10MHz - 20.0GHz
* Frequency resolution: 1 to 4Hz
* Output range: +10dBm to -20dBm (Option 004: +10dBm to -110dBm)
* Output level resolution: 0.1dB
* Internal level accuracy: 0.9dB
* Internal flatness: 0.6dB to 1.5dB depending on output level range
* Phase noise: -57dBc to -107dBc / 1Hz noise BW
* Long term stability is excellent at 1x10-9/day
Power cord and service manual CD are included.
