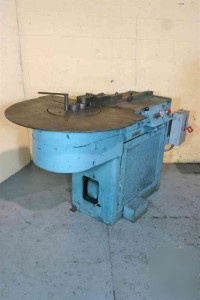

Diacro model #8 power bender
SERIAL ............................... 1-1182
MODEL ................................ 8
RADIUS CAPACITY ...................... 24
MAXIMUM DEGREE OF BEND ............... 360 DEGREES
CAPACITY STEEL TUBING, 16 GA ......... 1-1/2 OD
CAPACITY ROUND STEEL BAR ............. 3/4
CAPACITY SQUARE STEEL BAR ............ 1/2
CAPACITY FLAT BAR, BENT FLAT ......... 3/8 X 2
CAPACITY FLAT BAR, EDGEWISE .......... 3/8 X 1
CAPACITY ANGLE ....................... 3/16 X 1 X 1
CAPACITY CHANNEL ..................... 3/16 X 1/2 X 1
HYDRAULIC PRESSURE ................... 1000 PSI
BENDING SPEEDS ....................... 6 TO 12 RPM
MOTOR, HORSEPOWER .................... 3
