10' x 120 ton krras hydraulic cnc press brake

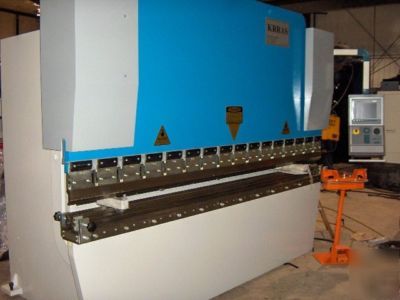

1-New Krras 10 x 120 Ton 4 Axis Hydraulic CNC Press Brake
Capacity........................................................................ 120 Tons
Overall Bending Length................................................. 122
Distance between Housings........................................... 102
Stroke............................................................................ 6.7
Open Height without Clamping...................................... 15.7
Open Height with Euro Clamp....................................... 12.5
Throat Depth................................................................. 11.8
Rapid Speed.................................................................. 3.15 /Sec
Bending Speed............................................................... .03 -.4 /Sec
Table Width................................................................... 7
Dimensions.................................................................... 134 x 59 x 95
Weight........................................................................... 15,400 Lbs
Main Motor.................................................................... 10 HP
Delem DA51 CNC Control, Grooved Bed Frame for Adding Wila Crowning Table, Full Length Upper Punch, Full Length Lower Die Block, 4 Controlled Axis
Price FOB Orange City, IA............................................ $71,500.00
Upgrade to Delem DA-65W CNC Control..................... $7,900.00
R Axis Vertical Movement............................................ $6,500.00
10 Manual Bed Compensator....................................... $2,300.00
Total............................................................................. $88,200.00
