Complete ibm touchscreen pos system restaurant/retail

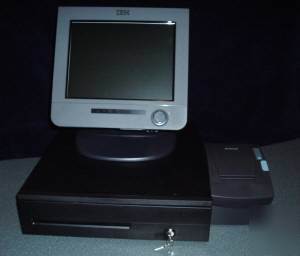

Complete IBM Touchscreen POS System Restaurant/Retail
Complete IBM Touchscreen Restaurant or Retail POS System
* 1 - IBM Anyplace Touchscreen Kiosk/POS computer.
* 1 - 3 Track Mag Card Reader
* 1 - Bixolon Receipt Printer
All items are new unless otherwise noted. Boxes have been opened to vereify contents and operation. Detailed specs for each item are found below.
IBM Anyplace Touchscreen KIOSK/POS Computer (Model 4836-13V)
These ultra compact kiosks combine an advanced infrared (IR) flat-panel touchscreen, an IntelCeleron M Processor 320 (1.30GHz), and optional peripherals in a slim, space-saving design that is easy to place.
IBM Anyplace Kiosks are cost-effective to install, service and manage, and they are ideal for pervasive installation across multiple markets, including retail, travel / tourism, communications, financial, government, transportation, entertainment, healthcare and other sectors.
* Sleek, compact kiosk combines processor with flat panel touchscreen.
* Improves reliability with a rugged, retail-hardened design
* Flexible kiosk platform delivers a dynamic interactive experience and is cost-effective for pervasive installation
* This is a brand new system, built by IBM. It has a compact all-in-one design, and is ideally suited for Kiosk-type applications. It comes equipped with a 12 inch dual-bulb, active-color LCD touch screen, and ample processing power via a 1.3GHz Intel-based system. It supports Windows (XP and 2000) and Linux operating systems, giving you the ability to implement a broad range of off-the-shelf applications, or to develop your own.
* It may be used as a stand-alone system, or it can be connected to a network or the Web. In addition to an Ethernet 10/100 port, it also has an 802.11B/G Wi-Fi card, giving you wireless LAN connectivity and great flexibility for deployment in virtually any retail environment. Its VESA-mount attachment provides the ability to mount it nearly any place: on a wall, in a shelf, on an end cap, tabletop, or pole, or in a floor-standing enclosure.
* It comes configured with a 30GB hard disk drive and 512MB of system memory. It uses standard laptop components and is easily upgradeable for larger disk capacity or additional system memory.
* The combination of all this computing capability and open systems and communication standards give you a platform where you can implement self-service applications as either thin or thick clients.
* Bright display with reduced glare
* Superior IR touch-screen technology
* Supports Windows 2000, Windows XP, and Linux
* Robust and stable platform
* Easy to install, service, and manage
* Standard 75mm and 100mm VESA mount attachment (ELO stand attaches using 100mm VESA mount)
* Intel Celeron M Processor 320 (1.3GHz, 400 FSB, 512KB cache)
* 12-inch active matrix TFT flatpanel LCD touch screen display (800 x 600 max. resolution)
* 512MB DDR system memory (upgradeable to 2GB)
* 2 SO-DIMM slots (one free for expansion)
* Headphone and microphone ports
* Power consumption: 40W typical/120W maximum
* Dimensions: 12.4 x 2.8 x 12.2 inches (315 x 72 x 310 mm)
* All-in-one IBM Anyplace Kiosk PC 4838-13V
* External power supply and US Power Cord
The following are not included
* Operating System (i.e., Windows, Linux)
* Optional peripheral components (e.g. - barcode scanner)
JAY Electronic Cash Drawer Model 5-120
* Works w/ most Epson & Epson compatible POS Receipt Printers (Star, Citizen, Samsung, Panasonic, Ithaca, etc)
* Also works w/ compatible POS Terminals.
* Size: 16 1/8" wide x 16 3/8" long x 4 1/2" high
* Includes detachable 6-wire interface cable w/ 6P6CRJ11(M) connectors.
* Includes drawer "open/closed" status switch.
* Includes 24VDC drawer kick-out solenoid.
* Includes removable ABS black cash tray w/ 5-bill compartments & 5-coin compartments.
* External 6P6CRJ11(F) interfacing port connector.
* Constructed of heavy-duty steel which allows placement of applicable POS terminals & peripherals on top.
* Drawer front security lock w/ 3-functions including locked open, locked closed, manual open. 2 keys included.
* Drawer front document slots allow sales slips, coupons, large media bills, etc to be inserted through the slots into the applicable storage space in the drawer.
* Drawer extension allows full access to all cash tray compartments.
* Suspension system maintains hardened steel ball-bearings wheels mounted on both the drawer and frame which ensures safe, continuous and smooth operations.
* Drawer release latch assembly is constructed of hardened, long ware steel components.
SAMSUNG BIXOLON SRP350 THERMAL RECEIPT PRINTERParallel / Dark GrayWith speed, quality and value, the Samsung SRP-350 thermal receipt printer is clearly first in it's class. It easily withstands the rigors of tough environments, printing receipts, coupons, logos or bar codes. The user-friendly design incorporates a small footprint, drop and load paper insertion and a standard cable cover.
* Technology: Thermal Transfer
* Maximum Mono Print Speed: 5.9 in/s47 lps
* Print Resolution: 180 x 180 dpi Monochrome
* Interfaces/Ports: 1 x 36-pin IEEE 1284 - Parallel
* Media Size: 3.13" x Roll Paper
* Maximum Roll Diameter: 3.3"
* Dimensions: 5.91" Height x 5.71" Width x 7.56" Depth
You will need a USB to Parallel Printer cable - it is not included.
* This SC443 3-track USB magnetic stripe reader is fully programmable. With a help of MSR setup tool (available for download - click here ) you may (if needed) modify MSR output format to meet your applications specifications.
* Reads ISO Track 1,2, and 3
* Programmable. Easy setup for any application
* Magnetic head use platinum and manganese alloy material, head life is more than 800,000 card passes.
* Card Standard ISO7811/7812
* USB interface (5ft (150cm) cable length, approximate)
* Reading Density: 210BPI, 75BPI, 210BPI
* Character: Track 1: 79 characters (7-bit); Track 2: 40 characters (5-bit); Track 3: 107 characters (5-bit).
* Dimension 90mm x 26mm x 27mm
