Lincoln electric maxsa 29 feed head - K2312-2

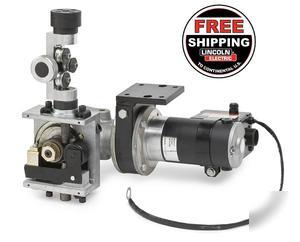

Lincoln Electric MAXsa 29 Feed Head - Subarc Wire Feeder - K2312-2
The compact MAXsa 29 Feed Head is intended for integrator solutions as well as the latest submerged arc robotic applications.
Closed Loop Speed Control Facilitates full control over starting, running and stopping wire feed speed.
32VDC permanent magnet, high torque motor that delivers plenty of traction to push up to 7/32 in. (5.6 mm) diameter solid wire. Top speed of up to 500 ipm (11.43 m/min) can be achieved by changing the gear ratio.
IP23 Rated Tested to withstand harsh environments.
Standard conversion kits Used to change the speed ratio to match the requirements of your application.
Rotational feed head adjustment in one plane allows flexible, accurate setup for fixturing.
Standard adjustable wire straightener.
Dimensions (in) H x W x D : 13 x 16 x 10
Dimensions (mm) H x W x D : 330 x 406 x 254
Wire Speed Range ipm (m/min): 10-200 (.25-5.08)
Solid Wire Size Range in (mm): 5/32-7/32 (4.0-5.6)
