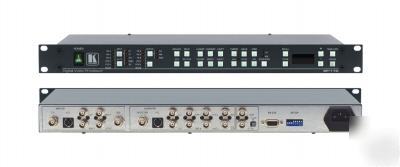

Kramer electronics sp-11D multi-standard processor
Manufacturer: Kramer Electronics Model/Part #: SP-11D
The SP-11D is a broadcast quality, video processor that functions as a proc-amp, a TBC, a format converter and a standards converter for composite video, s-Video (Y/C), RGB/component video (YUV or RGBS) and SDI video signals. The original and processed image can be viewed simultaneously with the split screen output enabled.
* Bandwidth - 5MHz, Fully Loaded.
* Multi-Format - Selected input is simultaneously output as composite video, s-Video, component video (YUV or RGBS) and SDI.
* Mult-Standard - NTSC (3.58.4.43), PAL (B/D/G/H/I/M/N), & SECAM.
* Standards Conversion - Any input format and standard can be converted to any output format and standard.
* Proc Amp Control - Contrast, brightness, H/V sharpness, level/gain (R, G, B, R-Y, & B-Y).
* Timing Control - Video delay, H/V delay, & SCH phase.
* Switching Synchronization - Synchronize either to external reference or internal genlock sync generator.
* Memory Locations - Store 15 multiple switches as presets to be recalled and executed when needed.
* Control - Front Panel and RS-232.
