Golf cart, boat, battery indicator, 12, 24 volt rect
Battery Condition Indicator -Solar System, Forklift, Golf Cart or other 12 or 24 volt DC battery powered equipment.
This unit will work on both 12 and 24 volt systems.
For use on any equipment where the battery status is important. It is specifically designed for battery power equipment to monitor the charge status of the battery or batteries.
Some mechanical aptitude is needed to make the installation. If you are not capable of finding an appropriate voltage supply, you may need to seek the help of a professional for installation.
The only available instructions are provided below.

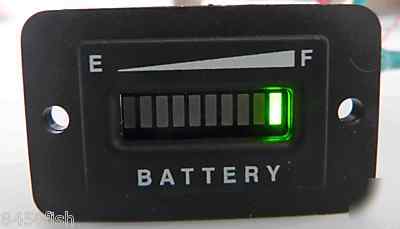

* The battery meter has 10 LEDS that will light to show the battery condition. When fully charged, only the 10th LED will light shown a green LED.
* As the battery discharges, successively lower LEDs will light; the 9th, 8th, 7th and so on lighting only 1 LED.
* At approximately 30% battery life, the #3 LED will light and the color is Yellow as a caution indicator.
* At approximately 20% battery life remaining, the #2 LED will light as a Flashing Yellow.
* When the battery discharges to approximately ~10% remaining life, the #1 LED will start FLASHING RED with the #2 LED FLASHING Yellow alternately.
It is recommended to have the battery or batteries recharged when the #3 LED lights Yellow as a safety margin to prevent dead batteries.
CAUTION: CAUTION: This is not a full proof device and no warranty is made that your battery/batteries is/are in good condition.
10 LEDs, #10 being fully charged and #1 being fully discharged
Voltage Indicator Range for Solar Systems, Golf Carts, Fork Lift Trucks and other battery powered equipment.
12 Volt - 12.34 volts full; 10.38 volts Empty
24 Volt - 24.65 volts full; 20.76 volts empty
-40 to 185 Fahrenheit; -40C to 85C

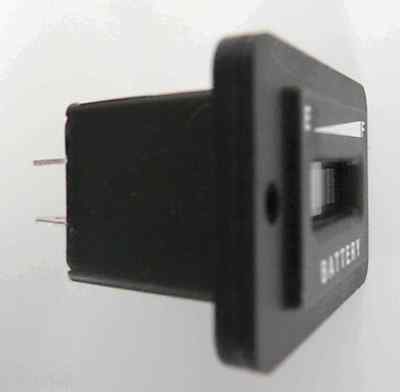

* Depth Behind front meter flange to end of mounting screws - 1 7/8 inches
If selecting international first class mail, no tracking information is available.
International Priority Mail is trackable (depending on country of destination) and insurable. However, this option is much more expensive.
Warranty: Hour meters are warranted for a period of 3 months from the date of sale.
