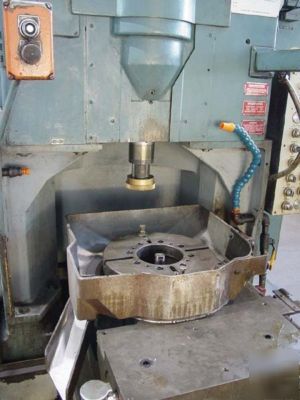

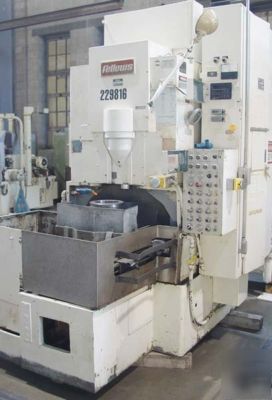

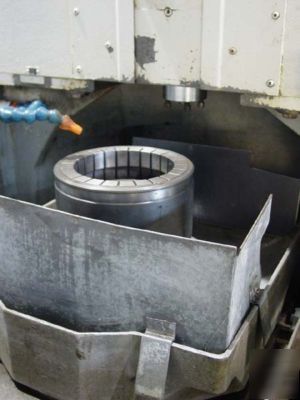

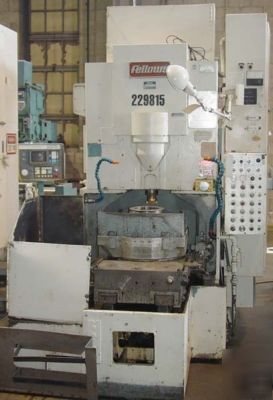

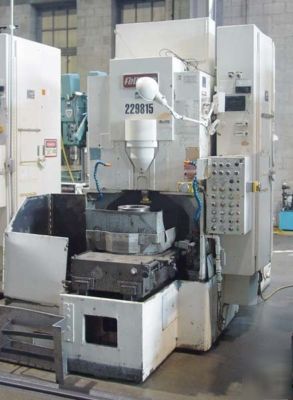

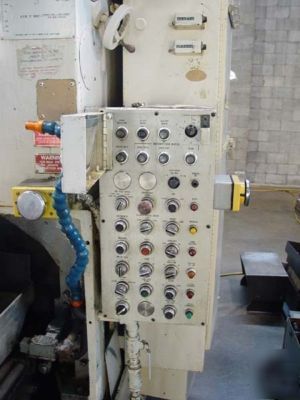

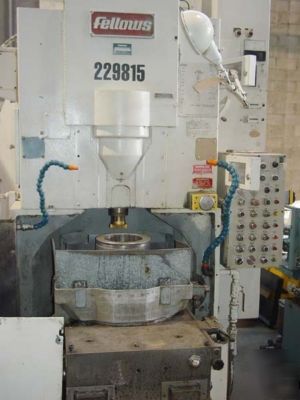

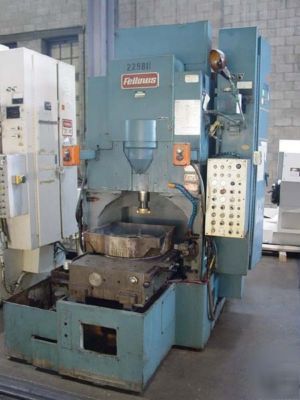

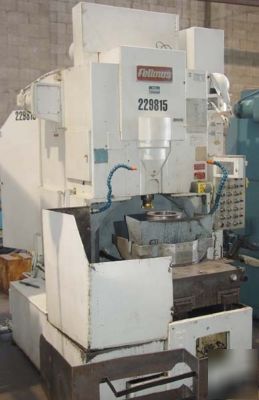

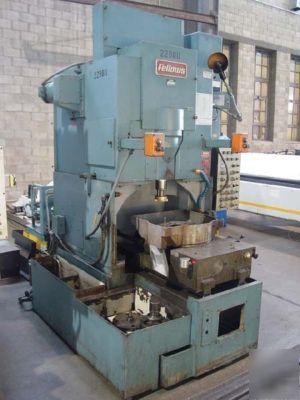

Fellows 10-2 gear shaper 10" max diameter gear machine
Model 10-2, S/N 35502, New 1978
Stock# K13003 This Machine has the Capacity for Cutting Internal or External Spur
or Helical Gears and many Non-Involute Shapes, Built-In Crowning
Ability, Taper Ability, Variable Speed Infeed for Better Finish and
Extended Cutter Tool Life, Cut and Infeed Rates are Set by
Potentiometers. EQUIPPED WITH: Infinitely Variable Depth Control, 3" Riser, Auto Cutter
Positioning, Mechanical Spur Guide, Hydraulic Work Clamping, Coolant
System, Automatic Lube System. CATALOGUE SPECIFICATIONS: Maximum Pitch Diameter, External...................... 10"
Maximum Pitch Diameter, Internal...................... 10"
Maximum Face Width Internal & External................ 2"
Maximum Diameter Swing................................ 19"
Maximum Diametral Pitch, Spur......................... 4
Maximum Diametral Pitch, Helical...................... 5
Maximum Helix Angle with Standard Guides.............. 45 Degrees
Speed................................................. 350-659 SPM
Horsepower............................................ 5 HP
Approximate Machine Dimensions........................ 97" x 58"
Approximate Machine Height............................ 119"
Approximate Machine Weight............................ 11,000 Lbs CONDITION: Appears to be in Very Good Condition! #10-2 FELLOWS GEAR SHAPER
Model 10-2, S/N 35565, New 1978
Stock# K13004 This Machine has the Capacity for Cutting Internal or External Spur
Potentiometers. EQUIPPED WITH: Infinitely Variable Depth Control, Auto Cutter
Positioning, 75 Type Mechanical Helical Guide, Hydraulic Work
Clamping, Coolant System, Automatic Lube System. CATALOGUE SPECIFICATIONS: Maximum Pitch Diameter, External...................... 10"
Model 10-2, S/N 35504, New 1978
Stock# K13002 This Machine has the Capacity for Cutting Internal or External Spur
Approximate Machine Weight............................ 11,000 Lbs CONDITION: Appears to be in Very Good Condition!
