Fabco air fill & relief pressure valve

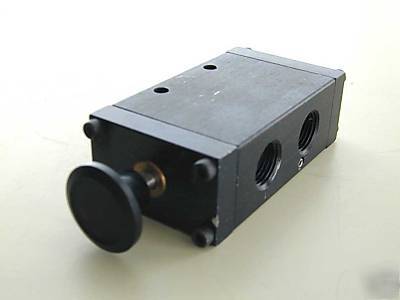

Fabco Air Fill & Relief Pressure Valve
Fabco-Air Pressure ( Fill ) and Relief ( evacuate ) Direct Ported Two ( 2 ) Position Valve with 1/2" NPT Ports. Body Dimensions: 4.5" x 2.5" x 1.5". This is a push-pull position valve model number 123-PO which is specified in Section 11 of the Fabco Air catalog (Click here to view or download the Adobe PDF catalog - section 11).
This is a description of the Series 12 valves provided quoted from the manufacturer:
12, 12A, 12B & 38 Series 3/8 & 1/2 NPT Ported 2, 3 & 4 Way 2 & 3 Position Valves offer several custom options as well as many catalog options. These valves of Aluminum Bar Stock Body and Operator Blocks along with Light weight Hard Anodized Aluminum Spools provide long service life. Available in the following operations:
* Single & Double Solenoid Operated
Model 123 PO taken from the Catalog Section 11
Push - Pull 2 Way - Natural Detent - 123-PO
Specify Model Number from chart. Specify Options.
(See page 11.27 & 11.28 for Dimensional Information.)
OPERATING RANGE: . . . . . . . . . . . . . . . . . 0 - 150 psi
For red knob add suffix -R to Model Number.
This item can be removed from the store at any time. It is available locally and through other vendors.
