2001 daewoo doosan puma 300C cnc turning center

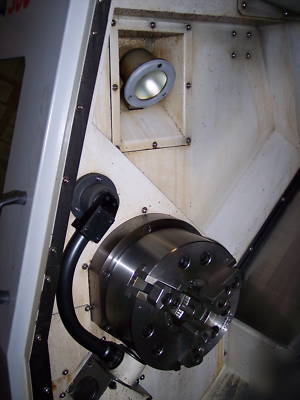

2001 Daewoo Puma 300C. Machine is in excellent condition with very low hours. Machine can be viewed under power as needed. 12" chuck and chip conveyor are included. Please review and contact Everett Dahlberg at (***)-930-9646 (****@520machinery.com) or Jason Stob at (***)-790-3358 (****@520machinery.com).

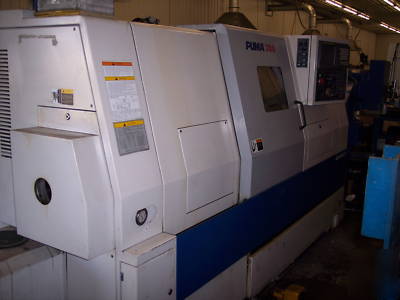

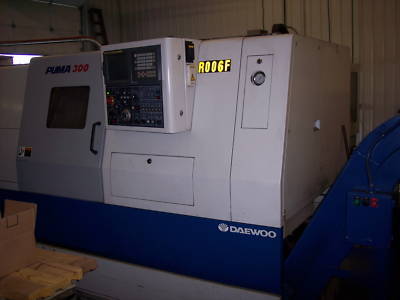

2001 Daewoo Puma 300C CNC Turning Center

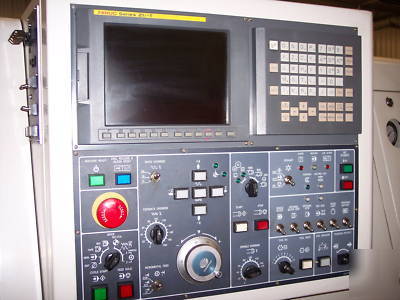

Control............................................................................................ Fanuc 21i-TB
X Axis Travel............................................................................................... 11.1"
Z Axis Travel.............................................................................................. 26.8"
X Axis Rapid Traverse Rates.................................................................. 800 IPM
Z Axis Rapid Traverse Rates................................................................... 945 IPM
Swing Over Bed........................................................................................... 23.2"
Swing Over Carriage.................................................................................... 14.5"
Maximum Turning Diameter........................................................................ 15.7"
Spindle Motor............................................................................................. 35 HP
Spindle Speed............................................................................. 28 2,800 RPM
Max Spindle Torque............................................................................ 884 Ft-Lbs
Spindle Nose.............................................................................................. A2-11
Draw Tube ID.............................................................................................. 4.05"
Spindle Bore Diameter................................................................................. 4.53"

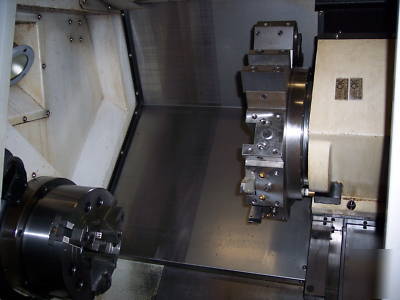

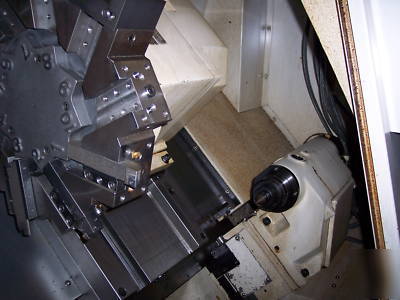

Turret................................................................................................................ 10
Machine Weight.................................................................................. 13,300 Lbs
