19.26 cu in m+s MLHP315C5 hydraulic motor 9-7489

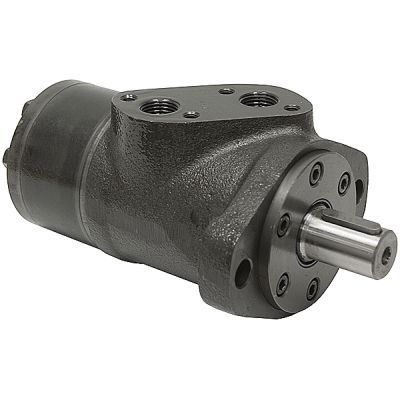

New M+S model MLHP315C5 spool valve gerotor hydraulic motor. Comparable to CharLynn "H" series.Threaded staggered ports will also accept bolt on adapter blocks such as crossover reliefs and shuttle valves. Case drain port for use when return pressure exceeds 300 PSI.
* Disp. 19.26 cu. in. / rev.
* Shaft 1" dia x 1.84" w/keyway
* Size 7" x 5-3/16" x 4-3/16"
