Ssc A3 acriche led emitter (AW3231) 230V ac
Seoul Semiconductors A3 Acriche (AW3231) 220V AC
Acriche is the world s first semiconductor light source that operates directly from AC power without a converter. This makes it suitable for many residential and commercial lighting applications where the main source of available power is AC. A design with Acriche product minimizes component count and board space.
SSC A3 Acriche (AW3231) 230V AC

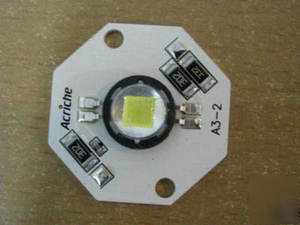

Seoul Acriche AW3231 white AC LED, 4 watts, 215 lumens, 6300K color temperature, 65 CRI, new in original factory reel pack. The AW3231 is powered directly from 230VAC @50/60Hz line current, without the requirement for a buck converter or any other intermediate components. Acriche LEDs are integrated into an oversize 'star' type metal core PCB package, with hemispherical silicone optics and a Lambertian radiation profile. The AW3231 has four large, specially constructed dies, internally wired in 2x2 series-parallel with gold bond wires.
Electro-Optical characteristics at 220V/230V Ta=25 C
*The above information is for reference purposes only.
*Accurate information is listed in the manufacturer's latest Datasheets
[1] Acriche series maintains a tolerance of 10% on flux and power measurements.
[2] V is the total luminous flux output as measured with an integratedsphere.
[3] Illuminance is measured at 50cm distance
[4] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
means tolerable voltage according to the voltage variation rate by one's country.
It is recommended that the temperature of lead frame should be below70
