Sor series 900 flow control switch

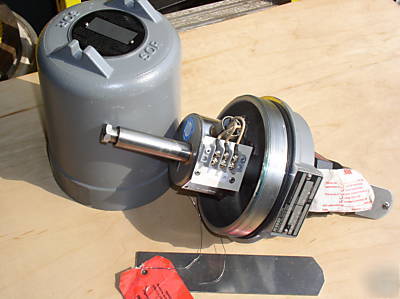

Vane actuated switch SOR MODEL 901A-F2A-B-F1-N7-TT
sensing of liquid flow in pipelines. These switches are magnetically
actuated and feature rugged internal construction and all stainless trim.
Minimum line pressure loss is provided by vane position at actuation.
These switches are designed for vertical mounting only.
They may be adapted to a large range of pipe sizes from 2-1/2 upward.
The standard model is furnished with a vane for an 8-inch line which
may be field trimmed for installation in smaller lines.
Internal trim is 300 and 400 series stainless steel. Spring material is
Inconel; o-ring material is VITON
