Heavy duty belt conveyor, 35 1/2" belt, 2HP

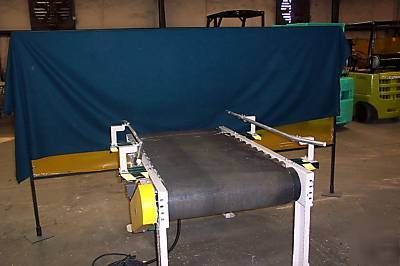

ICC Item # 10084, Unit was installed but conveyor was never put into production (AS NEW) 5'-5" OAL Heavy Duty Belt Over Roller Conveyor, 35 1/2" Wide 3 Ply Rubber Belt, 45 1/2" OAW, 3.5" dia. H/W rollers W/ 3/4" dia round shafts on 6" centers, End Drive, 8 1/2" dia Drive Pulley w/ 1 15/16" Dia Shafts, 8" Dia Tail Pulley W 1 15/16" Dia Shaft, Center take up W $" Dia Pulley, 2 HP 230/460/3/60 motor W/ 25:1reducer, 36" TOB Elev. W/ structural
