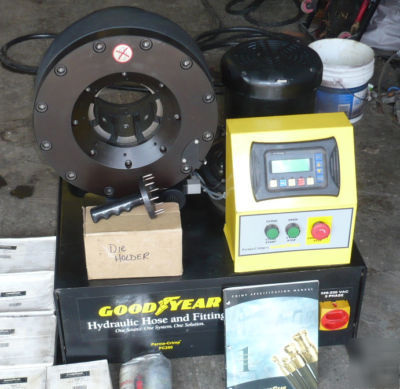

Goodyear perma-crimp PC200 hydraulic hose crimper
href="/ProductListing.aspx?folderid=774" title="Crimpers and Accessories">Crimpers and Accessories
Download the PC200 Operator's Manual in PDF format
The PC200 is a high volume, high capacity, stationary crimper, utilizing microprocessor control for the fastest, most accurate crimping system available. Crimp settings, dwell time, pre-set start positions and auto/manual operation are all easily set with electronic controls. This production crimper is a quick and easy way to make factory quality hose assemblies. The standard package is the PC200-1 crimper which includes a 7.5 HP, 230V/3 phase pump and foot pedal. The optional PC200-2 crimper includes a 7.5 HP, 480V/3 phase pump and foot pedal. The optional PC200-3(Single phase) includes a 5 HP, 220V single phase pump and foot pedal.
* Hose feed is horizontal from both front or rear.

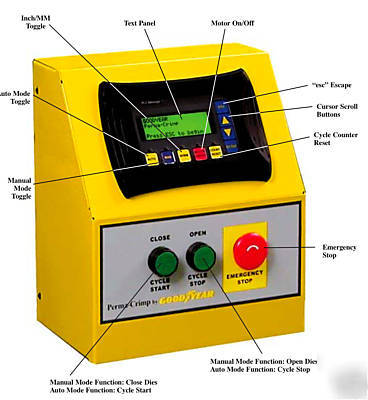

* Accurate Electronic PLC Crimp Diameter Adjustment
* Manual or automatic mode
* Maximum Die Opening: Die Closed Diameter +38mm
* Automatic shut off for precise crimps
* Power return stroke and return limit control
* Rapid retraction of die fingers through hydraulic system
* Die Sets easily changed using hand tool
* Accommodates bent tube/elbow couplings with the ability of installing 2", 90 degree fittings on both ends.
* 1/4" through 2" ID, 2 wire braid hose and 2" 6 spiral hose with all coupling end styles including most bent tubes.

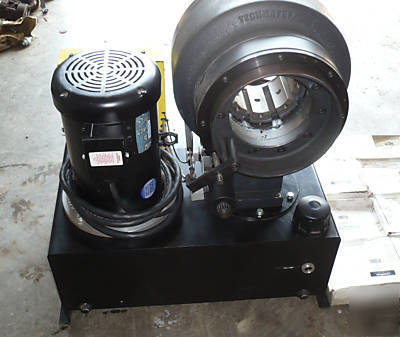

* 7.5 HP, 230V AC, 3 phase, 60 Hz PC200-1
* 7.5 HP 480V AC, 3 phase, 60 Hz PC200-2
* 5 HP, 220V AC, Single Phase, 60 Hz PC200-3 (Single phase)
Mounting: Bench or cabinet
Dimensions: 18.5" deep x 27.5" wide x 31.5" high (without die cabinet)
Weight: 573 lbs (excluding cabinet)

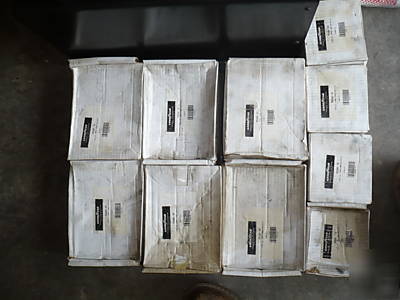

* PC200-1Skit includes the PC200-1 crimper and 10 die sets including 16mm, 19mm, 23mm, 31mm, 41mm, 50mm, 56mm, 62mm, 69mm, 78mm dies for 1/4" to 2" 1-braid to 6-spiral hose.
* PC200-2Skit includes the PC200-2 crimper and 10 die sets including 16mm, 19mm, 23mm, 31mm, 41mm, 50mm, 56mm, 62mm, 69mm, 78mm dies for 1/4" to 2" 1-braid to 6-spiral hose.
* PC200-Rack Black Die Cabinet 20" deep x 30" wide x 29" high
* PC200-MBS Manual Back Stop
* PC200-EBS Electric Back Stop
* PC900-Grease-1lb High Pressure grease in a 1 lb. can
* PC900-AerosolLube High Pressure grease in an aerosol can
mm, 23mm, 31mm, 41mm, 50mm, 56mm, 62mm, 69mm, 78mm dies for 1/4" to 2" 1-braid to 6-spiral hose.
* PC200-Rack Black Die Cabinet 20" deep x 30" wide x 29" high
* PC200-MBS Manual Back Stop
* PC200-EBS Electric Back Stop
* PC900-Grease-1lb High Pressure grease in a 1 lb. can
* PC900-AerosolLube High Pressure grease in an aerosol can
FOR MORE INFORMATION CONTACT ****@comcast.net or 615.300.0603
