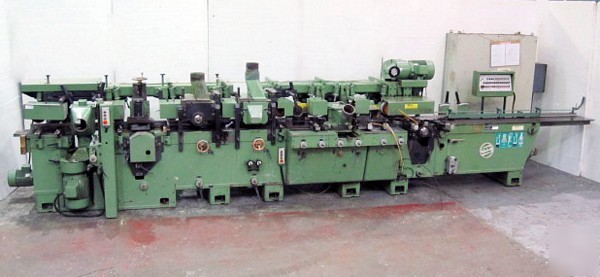

Weinig H30N planer moulder - 8 head
Weinig H30 N heavy duty 8 head planer and moulder.
Designed to plane and profile upto 300mm wide. This machine will plane mould and profile timber on all 4 sides in one pass. The machine has 2 top heads allowing you to make very deep moulded sections where a large cutter projection is needed. A universal head(8) for use when more awkward profiles and angles are required.Fitted with heavy duty powered feed system.6 driven bed rollers outboard bearing supports on all 4 horizonal spindles powerful spindle motors.Two serrated feed rollers before the first bottom headComes with a freestanding control panel
Pneumatic pressure to the feed rollers
Chrome plated bed reducing wear
Adjustable pneumatic pressure shoes on both to horizontals.
Feed speed (variable) 6-49m/min
Max finished stock 300x125mmShaft drive cardan
Head configuration B R L R T T B U
Motor powers 15,15,15,10,25,20,25,15hp
Overall dimensions 4700x1900x1600mm
