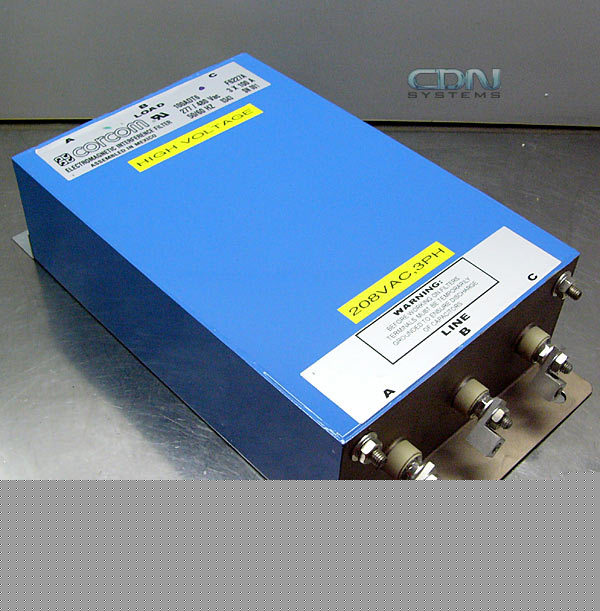

Corcom 100ADT6 emi/rfi filter 3PHASE 3X 100A 277VAC
Corcom 100ADT6 EMI/RFI Filter 3phase 3x 100A 277VAC NR!
Designed with very high insertion loss for Delta applications, these three phase filters work well in industrial applications to bring high current motor drives into compliance with the European EMC Directives
* Rated voltage (max.): Phase to phase: 480VAC, phase to ground: 277VAC
* Rated current: 100A per phase
* Max. Leakage, each line to ground: 4.6A @ 2.77VAC 60Hz
* Hipot rating (one minute): 2176VDC line to ground, 2837VDC line to line
* Minimum insertion loss, line to ground, in 50 circuit
* 90dB @ 1MHz thru 300MHz
* Minimum insertion loss, line to line, in 50 circuit
