> 25 MM74HC00N quad 2-input nand gates, 14 pdip

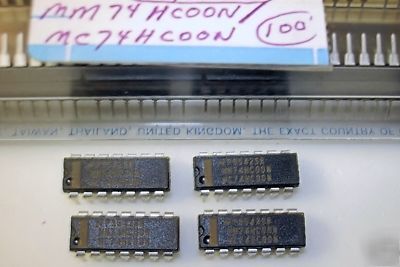

25 MM74HC00N quad 2-input nand gates, 14 pdip
MM74HC00N/MC74HC00N NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs. All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
* Typical propagation delay: 8 ns
* Wide power supply range: 2 6V
* Low quiescent current: 20 A maximum (74HC Series)
* Low input current: 1 A maximum
* 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
