60 ton minster model #6 obi press 1986 6-ss-26485

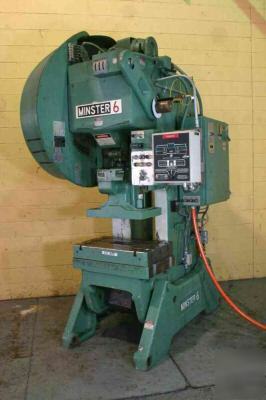

60 TON MINSTER MODEL #6 OBI PRESS
SERIAL ........................ 6-SS-26485
NEW ........................... 1986
MODEL ......................... 6
CAPACITY ...................... 60 TON
STROKE OF SLIDE ............... 4"
SLIDE ADJUSTMENT .............. 2-3/4"
SHUT HEIGHT, SDAU, OVER BED ... 16"
AREA OF BED ................... 32" LR X 21" FB
AREA OF SLIDE ................. 24" X 14-1/4"
STROKES PER MINUTE ............ 90 SPM
T-SLOTTED BOLSTER ............. 32" X 21" X 5"
DEPTH OF THROAT ............... 10"
WIDTH OF HOLE THROUGH BACK .... 15"
AIR CLUTCH AND BRAKE .......... YES
DUAL PALM BUTTONS ............. YES
MOTOR, HORSEPOWER ............. 5
