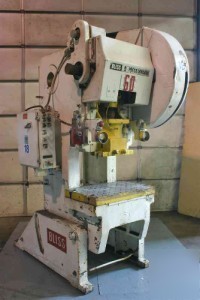

60 ton bliss #C60 flywheel type obi press
60 TON BLISS #C60 FLYWHEEL TYPE OBI PRESS
SERIAL ............................. HP46631
MODEL .............................. C60
CAPACITY ........................... 60 TON
STROKE OF SLIDE .................... 4
SLIDE ADJUSTMENT ................... 3
SHUT HEIGHT, SDAU .................. 14-1/4
AREA OF BED ........................ 32 X 20
AREA OF SLIDE ...................... 17 X 12
WIDTH OF HOLE THROUGH BACK ......... 15-1/4
DEPTH OF THROAT .................... 11
BOLSTER ............................ 32 X 21 X 3
FLYWHEEL TYPE ...................... YES
AIR CLUTCH AND AIR BRAKE ........... YES
MOTOR, HORSEPOWER .................. 10
