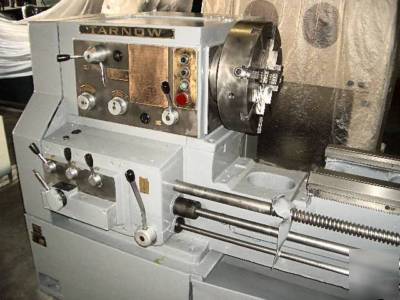

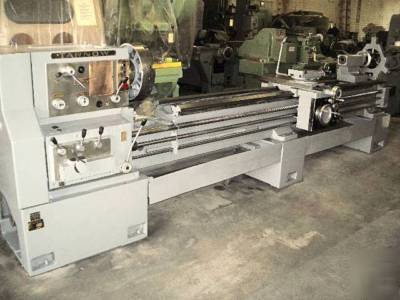

21"/30" x 120" tarnow model TUJ50X3000 gap bed lathe
21"/30" X 120" TARNOW MODEL TUJ50X3000 GAP BED LATHE
Swing Over Bed..................21"
Swing Over 9-3/4" Gap...........30"
Swing Over Cross Slide..........13"
Distance Between Centers........120"
Spindle Nose....................D1-11"
Spindle Bore....................3-1/2"
Spindle Speeds..................(18) 20 to 1600 RPM
Inch Threads....................(70) 1/4 to 58 TPI
Metric Threads..................(59) .5 to 112 MM
Bed Width.......................14-1/2"
Motor...........................15 HP 440/3/60
Weight..........................8300 LBS
Dimensions......................180" x 48" x 53"
