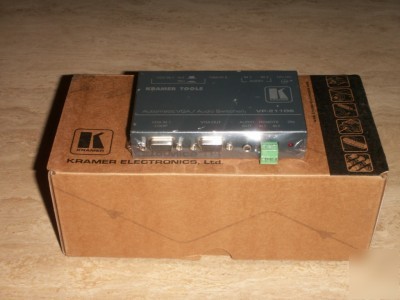

Kramer vp-211DS 2X1 xga-u audio auto switcher
Kramer VP-211DS 2x1 XGA-U AUDIO AUTO SWITCHER
Kramer VP-211DS 2:1 Automatic RGBHV / Audio Switcher HD15 In/Out
The Kramer VP-211DS is a high performance 2x1 automatic switcher for VGA through UXGA and stereo audio signals. It detects the presence of a VGA-type signal, and automatically switches to the active input. If signals are present on both inputs, input number one is selected. Audio is always switched together with the corresponding VGA input. The machine has a looping XGA input with a loop termination switch, ID bit control and contact closure remote control for forced operation. The machine uses active switching, and has very selective sync detection and reconstruction circuitry. The DS (Default Select) version allows the user to select which input is the default input, by using tiny switches accessible from the underside of the machine. Video bandwidth exceeding 300MHz ensures that the remains transparent even when operating at the highest resolutions. A 12V power supply is included but the optional VA-50P can power up to six Kramer devices requiring 12VDC. The VP-211DS is part of the Kramer TOOLS family of compact, high quality and cost effective solutions for a variety of applications.
Any system requiring automatic computer and presentation VGA/XGA routing.
Presentation systems with wall plates.
* High Bandwidth - 300MHz (-3dB).
* Selectable Input Signal Termination.
* Control - Automatic or contact closure.
* Automatic Standby Switching - It will switch from secondary input to primary input when a signal is detected.
* Primary Input - Selectable.
* Compact Size - Part of the Kramer TOOLS family of compact, high quality and cost effective solutions.
Kramer VP-211DS Specifications
2 VGA/UXGA on HD15F connectors. 2 unbalanced stereo audio on 3.5 mm mini audio connectors
1 VGA/UXGA on an HD15F connector. 1 VGA/UXGA on an HD15F connector (input #1 loop). 1 unbalanced stereo audio on a 3.5 mm mini audio connector.
Video: 300MHz; Audio: 100 kHz.
Video: 70.6 dB; Audio: 89 dB unweighted.
Video: -56 dB @ 5 MHz; Audio: -52 dB @ 1kHz.
Input 1 termination switch, contact closure remote control, input 1 ID bit switch (accessible from the underside). Input default selection switches (accessible from the underside).
12 cm x 7.5 cm x 2.5 cm (4.7 x 2.95 x 0.98 , W, D, H).
Power supply, mounting bracket.
