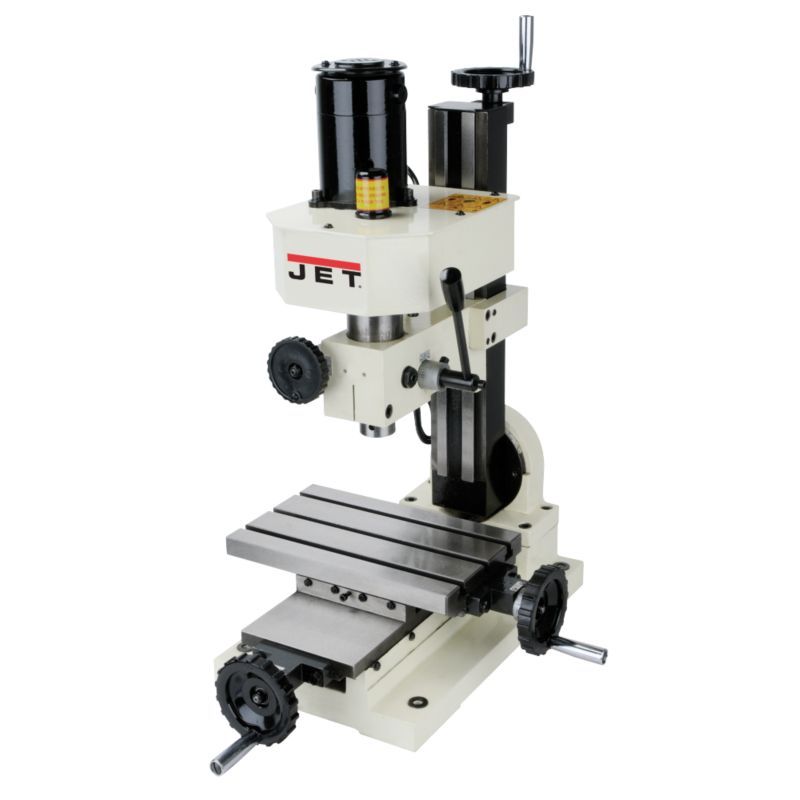

Jet 350200 jhm-610 hobby variable speed mini mill
This Jet 350200 JHM-610 Hobby Mini Mill is Brand New!
Cast iron design for vibration free operation
Electronic variable speed with 2-step gear box
Left hand spindle rotation allows for tapping
45 degrees right/left tilt tablecolumn for flexible work
Compound table precision machined with adjustable dovetail guides
Micro adjustable spindle downfeed
Keyless chuck with MT-2 arbor
Drilling and milling guard
Jet JHM-610 Specifications:
Number of Spindle speeds: Electronic Variable speed with 2 gear ranges
Max Distance Spindle to Table ( in.): 8-1/4
Distance Spindle to Column (in.): 5-1/2
Table Longitudinal Travel (in.): 7-1/2
Table Cross Travel (in.): 4
T-Slots Number and Size (in.): 3/8
Drilling Capacity (in.): 3/8
Face Mill Capacity (in): 3/4
End Mill Capacity (in.): 3/8
Range of Spindle Speeds (RPM): Low 100-1000RPM; High 100-2000RPM
Table Size (in.): 5-3/4 x 9-1/2
