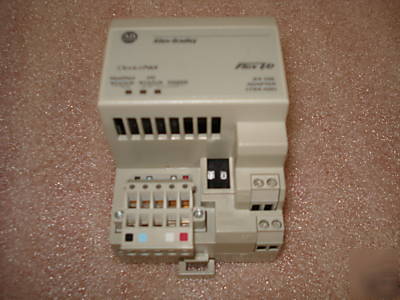

Allen bradley 1794-adn - devicenet flex i/o adapter mod
DeviceNet FLEX I/O Adapter Module
Power supply: The 24V dc power supply must be capable of providing a turn-on inrush surge current of 23 A for 2 ms for each adapter connected to this supply.
Input voltage rating: 24V dc nominal; 19.2V to 31.2V dc (includes 5% ac ripple)
Current draw: 450 mA max; 330 mA at 24V dc
Communication rate: 125 KB; 250 KB; 500 KB
Indicators:Power - on/off; ModNet Status - red/green; I/O Status - red/green
Flexbus output current: 640 mA max at 5V dc
Isolation voltage: Tested at 850V dc for 1 s between user power and flexbus
Power dissipation: 7.6W max @ 19.2V dc
Thermal dissipation: 26 BTU/hr @ 19.2V dc
DeviceNet power requirements: 24V dc (+4%) at 90 mA max
Dimensions:87H x 68W x 69D mm; 3.4H x 2.7W x 2.7D in.
Item is guaranteed as described; if item is found to be other than described a full refund will be awarded. No other guarantee is expressed or implied. Contact must be made within 14 days of receipt of merchandise for any returns. All items must be returned in original packaging including any original factory packaging that was sent. Items returned without prior authorization will not be accepted. Every effort will be made to resolve any possible issues in a timely and mutually agreeable manner as possible.
