> Ab SLC500 1747-L532 slc 5/03 processor

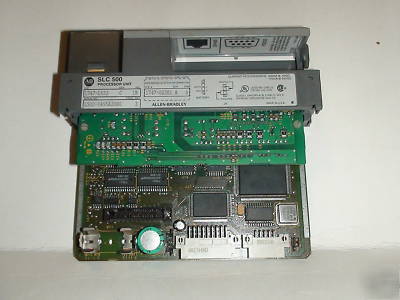

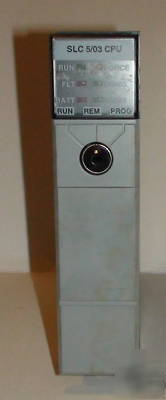

Ab SLC500 1747-L532 slc 5/03 processor
(12K words for data or prog.)
(4K words for data only)
* No. of Local I/O Chassis, Max.
* No. of I/O Module Slots in the Local I/O Chassis, Max.
T The absolute maximum number of I/O for these processors only reflects the I/O addressing capability. It does not take into account the amount of memory that may be required for a ladder-logic program to monitor and control the I/O. The practical ratio of memory per I/O is totally dependant upon your specific application.
You cannot configure this number of I/O for these processors with local I/O only. To configure this number of I/O for these processors, you must add a 1747-SN Remote I/O Scanner module to configure I/O on a Universal Remote I/O link, add a 1747-SDN DeviceNet Scanner module to configure I/O on a DeviceNet network and/or add a 1747-SCNR ControlNet Scanner module to configure I/O on a ControlNet network.
With this processor, you can also install a 1747-SN Remote I/O Scanner module to configure I/O on a Universal Remote I/O link and/or add a 1747-SDN DeviceNet Scanner module to configure I/O on a DeviceNet network. You can configure 32 I/O chassis per Universal Remote I/O scanner using complementary I/O. If you don t use complementary I/O, you can configure 16 I/O chassis per Universal Remote I/O scanner. With the DeviceNet scanner, you can address a maximum of 63 DeviceNet devices over the DeviceNet network.
The SLC 5/03 has an RS-232 port, which can also be configured for a DH-485 network, enabling the SLC-5/03 to connect to two DH-485 networks simultaneously.
