2N3904 2N3906 PN2222 1N4001 1N4002 1N4004 1N4007 KITX35

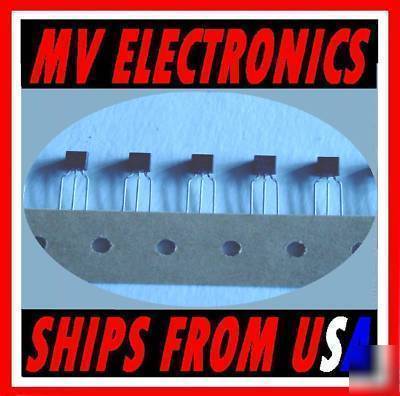

TRANSISTOR AND DIODE ASORTMENT KIT.
2N3904, 2N3906, PN2222, TRANSISTORS 5 OF EACH.
1N4007 1000V 1N4004 400V, 1N4002 100V, 1N4001 50V, 1A DIODE RECTIFIERS 5 OF EACH. FOR A TOTAL OF 35 TRANSISTORS AND DIODES
iN4007 1N4004 1N4002 1N4001 DATASHEET LINK
2N3904 NPN GENERAL PURPOSE TRANSISTOR TO-92
Characteristic Symbol 2N3904 Unit:
Collector-Base Voltage VCBO 40 V
* Collector-Emitter Voltage V
* Collector Current - Continuous I
DC Current Gain IC = 10 mA, VCE = 1.0 V 100 MIN 300 MAX
2N3906 PNP GENERAL PURPOSE TRANSISTORTO-92
Characteristic Symbol 2N3906 Unit:
* Collector-Base Voltage VCBO 40 V
* Collector-Emitter Voltage V
* Collector Current - Continuous I
* hFE DC Current Gain IC = 10 mA, VCE = 1.0 V 100 MIN 300 MAX
PN2222 TRANSISTOR NPN GENERAL PURPOSE TO-92
Characteristic Symbol PN2222 Unit:
* Collector-Base Voltage VCBO 60 V
* Collector-Emitter Voltage VCEO 30 V
* Emitter-Base Voltage VEBO 5.0 V
* Collector Current - Continuous IC 600 mA
* hFE DC Current Gain IC = 150 mA, VCE = 10 V 100 MIN 300 MAX
For more Electronic parts LINK TO MY STORE
We accept returns within 14 days if product is defective. If you ordered the wrong item we will refund the cost of the item only.
